HC





Put Your Fleet On The Street



Make short work of big storms. The 9' and 10' FISHER® HC heavy contractor snowplows are built for big trucks and designed to move large amounts of snow. So no matter what contractors or municipality plow drivers get thrown their way, they can move the snow, then move on to the next parking lot or street, time and time again.

TYPE OF SNOWPLOW
Straight Blade Snowplow


FISHER® HC snowplow










UNIQUE FEATURES







Fisher® HC - PLOW BLADE CONSTRUCTION



Fisher® HC - STRUCTURAL REINFORCEMENT

Plow Blade Construction

Structural Reinforcement

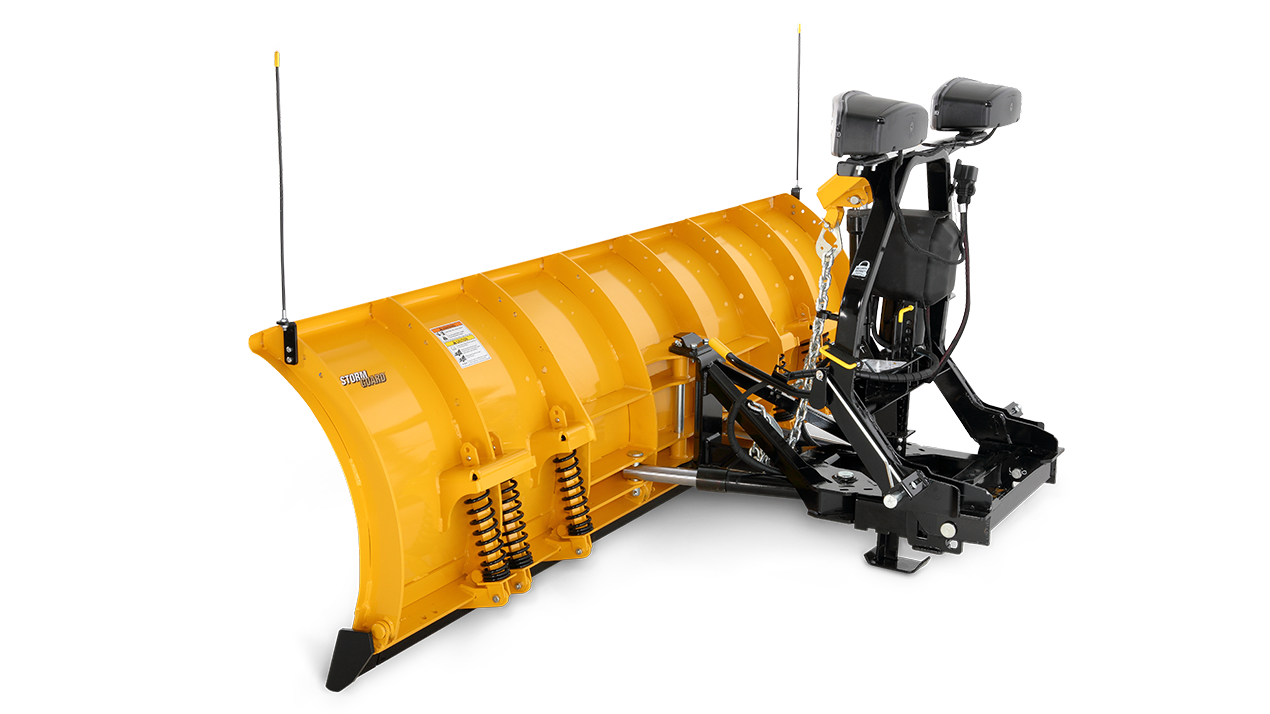

The HC snowplow features a massive 34"-tall, 11-gauge, powder coated steel blade that is available in 9' and 10' widths. The aggressive attack angle and blade overhang promote a clean scrape and snow rolling.     The HC snowplow features heavy-duty vertical ribs, gussets and pins, all reinforced by Fisher Engineering’s proven T-frame design. This design is built strong to withstand even the heaviest snow for heavy-duty commercial and municipal vehicle applications.


Fisher® HC - OSCILLATING A-FRAME



Fisher® HC - RELIABLE HYDRAULICS

Oscillating A-Frame

Reliable Hydraulics

With its oscillating A-frame, the HC snow plow pivots from side to side allowing the blade to follow the contours of the plowing surface for improved scraping and even cutting edge wear.     We produce our own hydraulic system to ensure the highest standards of performance, quality and reliability, giving you a plow that is fast, responsive and built to last.

All critical hydraulic components are fully enclosed for protection from the elements.


Fisher® HC - TRIP PROTECTION



Trip Protection

Our industry-leading trip-edge design protects you and your equipment when encountering hidden obstacles. For improved efficiency and less cleanup, only the bottom edge trips, keeping the blade upright and plowed snow in front of the blade.

The FISHER® trip edge uses compression-type springs that never require adjustment and will not wear out like extension springs.









UNIVERSAL FEATURES







Contact a Hitch City near you to find out how to outfit your Fisher® HC Heavy Contractor Snowplow



Fisher® HC - INTENSIFIRE™ Headlamps



Fisher® HC - MINUTE MOUNT® 2 SNOWPLOW MOUNTING SYSTEM

INTENSIFIRE™ Headlamps

Minute Mount® 2 Snowplow Mounting System

Available in both LED and Dual-Halogen models, INTENSIFIRE™ headlamps are engineered and tested for maximum light output, performance and durability to keep you ahead of the next storm.     The reliable, mechanical attachment design of the Minute Mount® 2 snowplow mounting system allows for easy hook-up with no tools required and no electrical switches to fail and leave you struggling out in the cold.


Fisher® HC - CHAIN LIFT DESIGN



Fisher® HC - FLEET FLEX Electrical System

Chain Lift Design

FLEET FLEX Electrical System

The FISHER® chain lift design offers a wide range of performance and reliability advantages over a direct lift system.     With the FISHER® FLEET FLEX Electrical System, you have true fleet interchangeability. Unlike other manufacturers who require a different control system for different plows, the FISHER FLEET FLEX system lets you operate any FISHER Minute Mount® 2 plow on any truck with the same Fish-Stik® hand-held or joystick control.


Fisher® HC - SECURITY GUARD™ ANTI-THEFT SYSTEM



Fisher® HC - UNIVERSAL CONTROL OPTIONS

SECURITY GUARD™ Anti-Theft System

Universal Control Options

The exclusive SECURITY GUARD™ anti-theft system is a safe and secure way to electronically lock your snow plow whenever it is detached from your truck.     Choose between the ergonomic Fish-Stik® hand-held control or the dash-mounted joystick control based on your preference. Both feature automatic shutoff, backlit buttons for night operation, and LED lights which indicate "power" and "float" mode.

Additional features include programmable "soft-stop," "one-touch" float, built-in SECURITY GUARD™ Anti-Theft System, and plug-in connector for easy removal.


Fisher® HC - STORM GUARD™ Baked-On Powder Coat



Fisher® HC - ISOLATION MODULE

STORM GUARD™ Baked-On Powder Coat

Isolation Module

The industry’s best protection against wear and rust, the STORM GUARD™ baked-on powder coat with epoxy primer is standard on all FISHER® snow plows.     An underhood module transfers lights from vehicle to plow automatically and improves system reliability by using plug 'n play, sealed electrical connections that comply with OEM requirements. Isolating the plow's electrical system from the vehicle's prevents the potential of electrical system damage in the event of a shorted circuit.


Fisher® HC - PRE-PUNCHED BLADES FOR ACCESSORIES



Pre-Punched Blades for Accessories

The blade is pre-punched for easy installation of accessories, providing a custom fit. The pre-punched holes also prevent damage to the powder coat that can sometimes occur when installing an accessory.




PRODUCT SPECIFICATIONS






If you have questions about which FISHER® HC Heavy Contractor Snowplow is best for you, please call or contact us and we will be happy to assist you.


Download
HC Heavy Contractor Snowplow Sell Sheet		   HC Heavy Contractor Snowplow Sell Sheet
Download
Snowplow Full-line Product Brochure		   Fisher Snowplow Full-Line Brochure



FISHER® HC HEAVY CONTRACTOR SNOWPLOW
Models   9"   10'
Blade Width   9'   10'
Blade Height   34"   34"
Blade Gauge   11   11
Trip Springs   6   6
Vertical Ribs   8   8
Lift Cylinder   1 ¾" x 10"   1 ¾" x 10"
Angling Rams   2" x 12 ½"   2" x 12 ½"
Plowing Width (Full Angle)   7' 11"   8' 9"
Approx. Weight*   1,100 lb   1,125 lb
Cutting Edge   ½" x 6"   ½" x 6"
Mount Type   Minute Mount® 2   Minute Mount® 2
*Does not include vehicle mount. Please contact a Hitch City associate for specific vehicle application details.
