XLS







When Winter Attacks, Fight Back in a Big Way



When winter attacks, fight back in a big way. The next generation of the XLS™* expandable wing snowplows delivers a whole new level of versatility, efficiency and performance. The only expandable plow with independent wing control and trip-edge protection, the XLS plows come with flared wings and are available in two blade sizes: 8'–10' and 8'6"–11'. They are built bigger and stronger to carry more snow and accommodate larger trucks. Maximize handling and capacity with unmatched windrowing productivity so you can continue doing what you do, more efficiently and profitably.


TYPE OF SNOWPLOW
Winged Plow


FISHER® XLS™ V-Plow











UNIQUE FEATURES








Fisher® XLS™ - PLOW BLADE CONSTRUCTION



Fisher® XLS™ - STRUCTURAL REINFORCEMENT

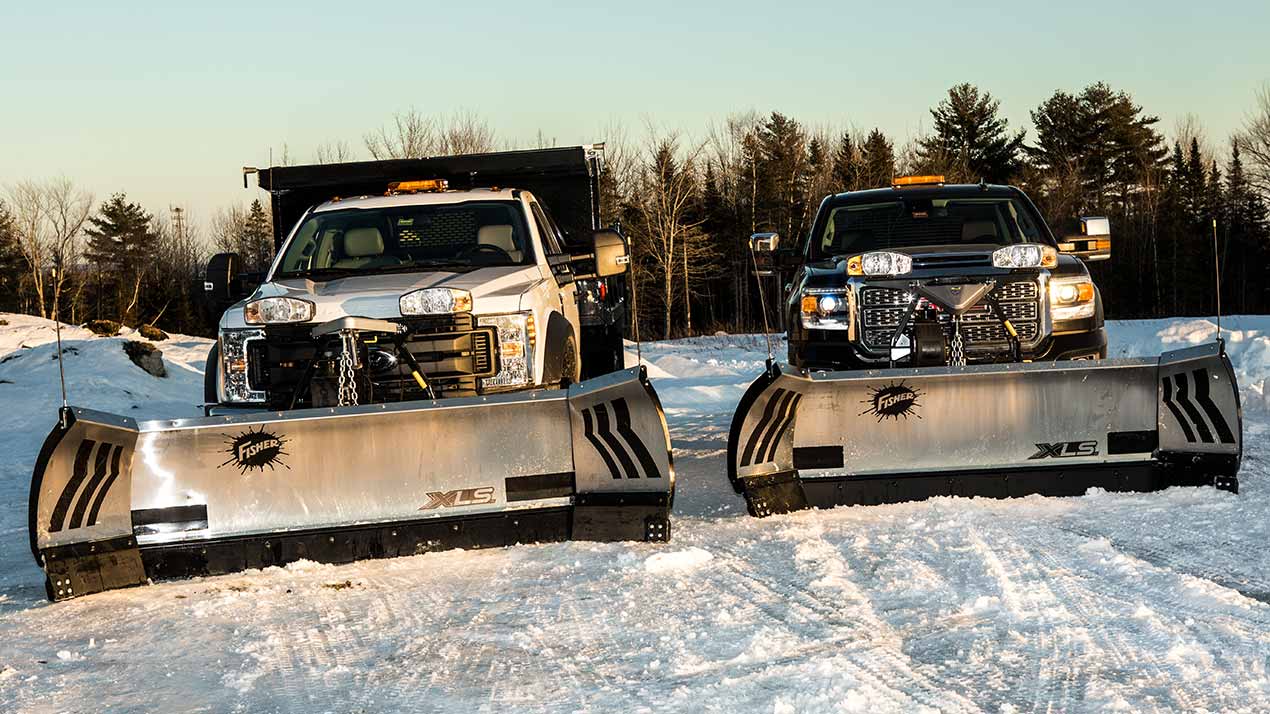

Plow Blade Construction



Expandable to 11'

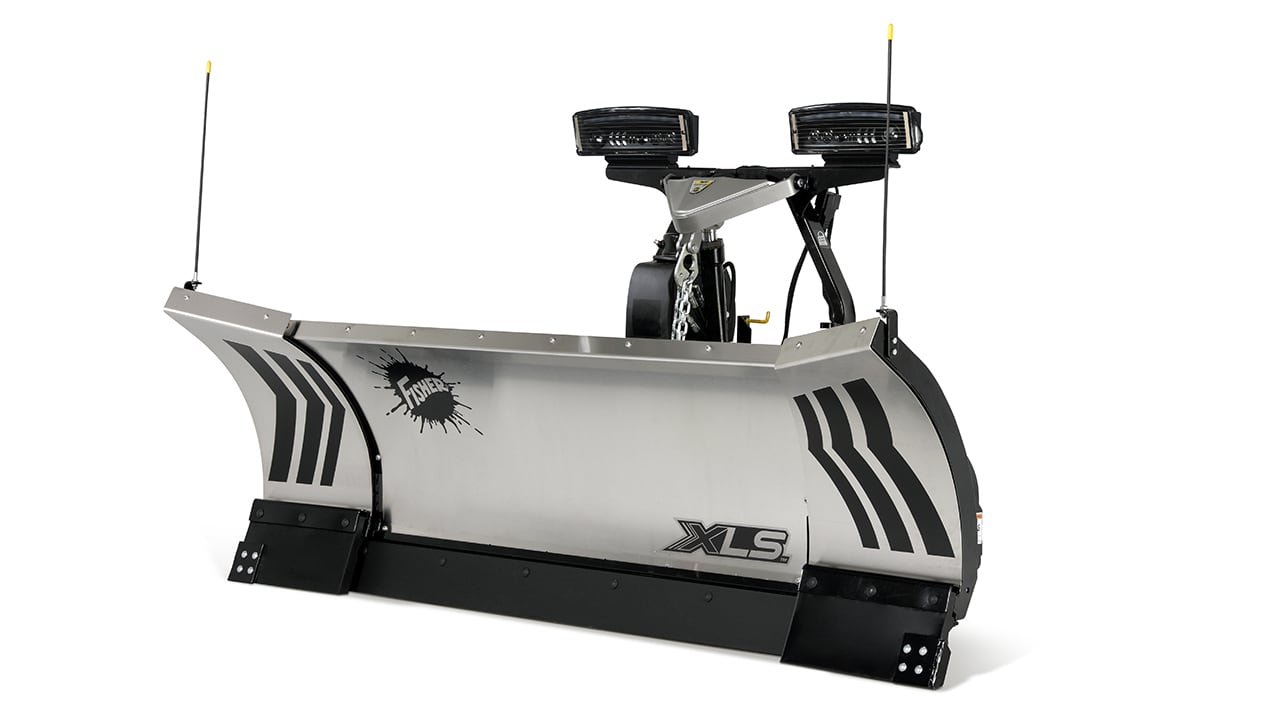

Available in powder coat or stainless steel, the XLS snow plow is available in two blade widths.

The 31" tall, 14-gauge moldboard features independent wing control and comes standard with a 6" high-carbon steel cutting edge, increasing wear resistance, and the poly wing cutting edges feature trip protection. The blade is also pre punched for easy accessory installation.
    The 8' XLS retracted blade extends to 10'. Angle the 35" flared wings forward for an 8' 10" scoop position. The 8' 6" XLS retracted blade extends to 11'. You can also angle the 36" flared wings forward for a 9' 10" scoop position.


Fisher® XLS™ - STRUCTURAL REINFORCEMENT



Fisher® XLS™ - HEAVY-DUTY SLIDE BOX

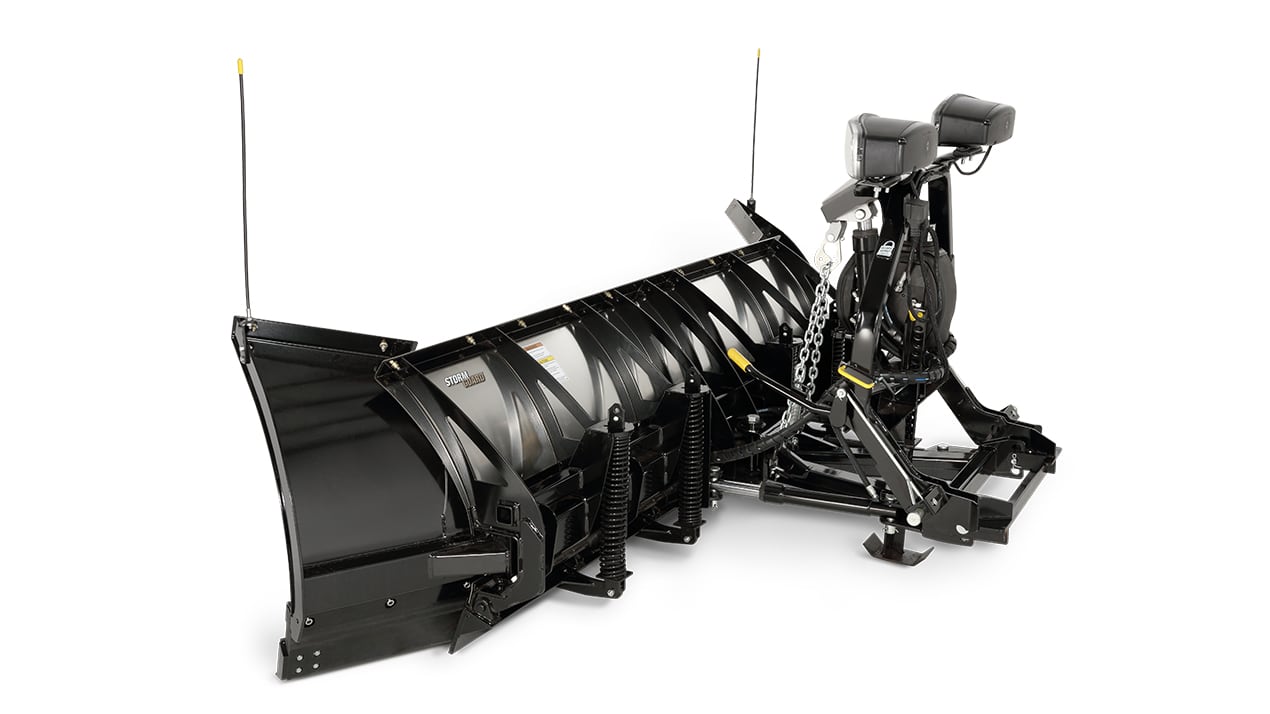

Structural Reinforcement



Heavy-Duty Slide Box

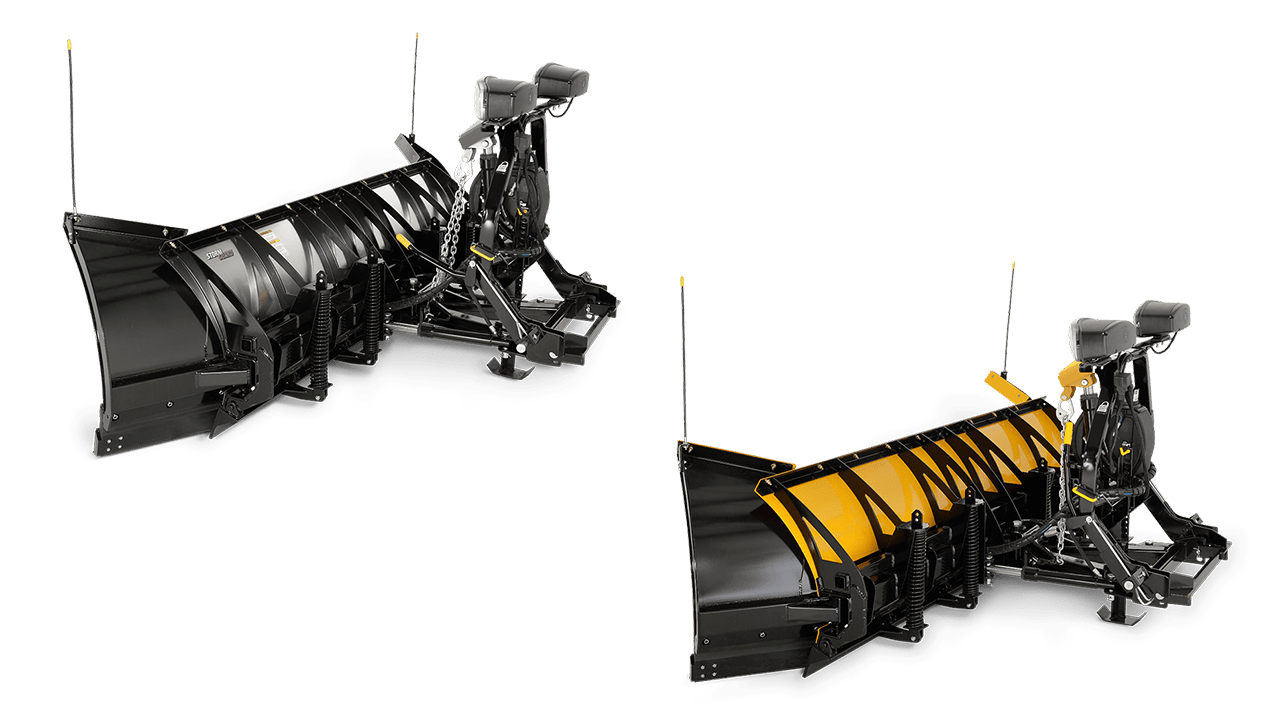

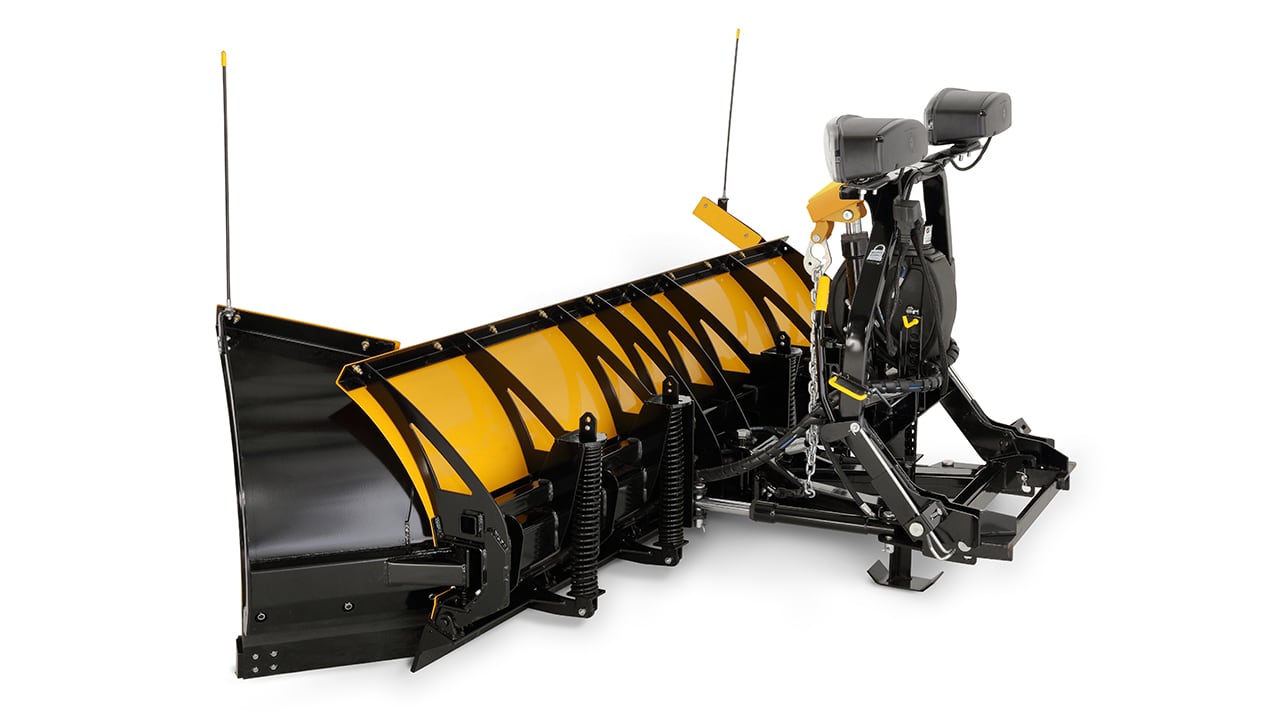

The next generation XLS™ snowplow features a heavy-duty torque tube and ten vertical ribs for substantial structural support. The tough construction of this channel provides rigidity and blade strength to eliminate buckling under extremely heavy forces.     Hydraulic wing extensions slide laterally across the structurally reinforced slide box, constructed with 3/16" heavy-grade steel to maximize snow removal capacity without buckling.


Fisher® XLS™ - FLARED WINGS FOR EFFICIENCY



Fisher® XLS™ - TRIP PROTECTION


Flared Wings for Efficiency



Reliable Hydraulics


The XLS plows feature flared wings as tall as 36" to maximize snow plowing efficiency at the touch of a button with Retracted Straight, Expanded Straight, Windrow and Scoop modes.

The flared-wing design can aggressively cast snow further while windrowing, making it the ultimate windrowing machine. The wings expand forming an even larger plow to move more snow and can retract for transport.

The flared wings can be controlled independently, quickly changing the plow configuration from retracted to expanded, to scoop and to windrow.
    We produce our own hydraulic system to ensure the highest standards of performance, quality and reliability, giving you a plow that is fast, responsive and built to last.

All critical hydraulic components are fully enclosed for protection from the elements.


Fisher® XLS™ - TRIP PROTECTION



Trip Protection



Our industry-leading trip-edge design protects you and your equipment when encountering hidden obstacles. For improved efficiency and less cleanup, only the bottom edge trips, keeping the blade upright and plowed snow in front of the blade.

The FISHER® trip edge uses compression-type springs that never require adjustment and will not wear out like extension springs.

The XLS™ wings feature polyurethane cutting edges designed specifically to provide added trip protection.











UNIVERSAL FEATURES








Contact a Hitch City near you to find out how to outfit your Fisher® XLS™ Winged Plow



Fisher® XLS™ - INTENSIFIRE™ Headlamps



Fisher® XLS™ - MINUTE MOUNT® 2 SNOWPLOW MOUNTING SYSTEM


INTENSIFIRE™ Headlamps



Minute Mount® 2 Snowplow Mounting System


Available in both LED and Dual-Halogen models, INTENSIFIRE™ headlamps are engineered and tested for maximum light output, performance and durability to keep you ahead of the next storm.     The reliable, mechanical attachment design of the Minute Mount® 2 snowplow mounting system allows for easy hook-up with no tools required and no electrical switches to fail and leave you struggling out in the cold.


Fisher® XLS™ - CHAIN LIFT DESIGN



Fisher® XLS™ - FLEET FLEX Electrical System


Chain Lift Design



FLEET FLEX Electrical System


The FISHER® chain lift design offers a wide range of performance and reliability advantages over a direct lift system.     With the FISHER® FLEET FLEX Electrical System, you have true fleet interchangeability. Unlike other manufacturers who require a different control system for different plows, the FISHER FLEET FLEX system lets you operate any FISHER Minute Mount® 2 plow on any truck with the same Fish-Stik® hand-held or joystick control.


Fisher® XLS™ - SECURITY GUARD™ ANTI-THEFT SYSTEM



Fisher® XLS™ - UNIVERSAL CONTROL OPTIONS


SECURITY GUARD™ Anti-Theft System



Universal Control Options


The exclusive SECURITY GUARD™ anti-theft system is a safe and secure way to electronically lock your snow plow whenever it is detached from your truck.     Choose between the ergonomic Fish-Stik® hand-held control or the dash-mounted joystick control based on your preference. Both feature automatic shutoff, backlit buttons for night operation, and LED lights which indicate "power" and "float" mode.

Additional features include programmable "soft-stop," "one-touch" float, built-in SECURITY GUARD™ Anti-Theft System, and plug-in connector for easy removal.


Fisher® XLS™ - STORM GUARD™ Baked-On Powder Coat



Fisher® XLS™ - ISOLATION MODULE


STORM GUARD™ Baked-On Powder Coat



Isolation Module


The industry’s best protection against wear and rust, the STORM GUARD™ baked-on powder coat with epoxy primer is standard on all FISHER® snow plows.     An underhood module transfers lights from vehicle to plow automatically and improves system reliability by using plug 'n play, sealed electrical connections that comply with OEM requirements. Isolating the plow's electrical system from the vehicle's prevents the potential of electrical system damage in the event of a shorted circuit.


Fisher® XLS™ - PRE-PUNCHED BLADES FOR ACCESSORIES



Pre-Punched Blades for Accessories



The blade is pre-punched for easy installation of accessories, providing a custom fit. The pre-punched holes also prevent damage to the powder coat that can sometimes occur when installing an accessory.




PRODUCT SPECIFICATIONS







If you have questions about which FISHER® XLS™ Winged Plow is best for you, please call or contact us and we will be happy to assist you.


Download
XLS Expandable Wing Snowplow Sell Sheet
  XLS Expandable Wing Snowplow Sell Sheet
Download
Snowplow Full-line Product Brochure
  Fisher Snowplow Full-Line Brochure




FISHER® XLS™ WINGED PLOW
Models   8'-10' (180209-lower)   8'-10' (180210-higher)   8' 6"-11'
Blade Width   8' Retracted
10' Expanded
8' 10" Scoop
  8' Retracted
10' Expanded
8' 10" Scoop
  8' 6" Retracted
11' Expanded
9' 10" Scoop
Blade Height   29"   31" at Center
35" at End
  31" at Center
36" at End
Blade Gauge   12   14   14
Trip Springs   4   4   4
Vertical Ribs   10   10   10
Lift Cylinder   1 ½" x 10"   1 ¾" x 10"   1 ¾" x 10"
Angling Rams   1 ½" x 10"   1 ½" x 10"   1 ½" x 10"
Plowing Width   7' 2" Retracted
9' Expanded
7' 11" Scoop
  7' 2" Retracted
9' Expanded
7' 11" Scoop
  7' 11" Retracted
10' 6" Expanded
9' 6" Scoop
Approx. Weight*   985 lb   1,107 lb   1,140 lb
Blade Cutting Edge   Optional   ½" x 6" Steel   ½" x 6" Steel
Wing Cutting Edge   1 ½" x 9" Polyurethane   1 ½" x 9" Polyurethane   1 ½" x 9" Polyurethane
Mount Type   Minute Mount® 2   Minute Mount® 2   Minute Mount® 2
*Does not include vehicle mount. Please contact a Hitch City associate for specific vehicle application details.
