HTS








PROFESSIONAL PLOW FEATURES FOR YOUR HALF-TON TRUCK


Perfect for contractors and homeowners, the WESTERN® HTS™ snowplow is a full-size, full-featured plow designed for lighter half-ton, four-wheel-drive trucks. Engineered for strength and weight, this plow is ideal for personal and light commercial applications such as driveways, small commercial lots and parking spaces.


WESTERN® HTS™ snowplow









UNIQUE FEATURES






Western HTS™ - PLOW BLADE CONSTRUCTION



Western HTS™ - STRUCTURAL REINFORCEMENT

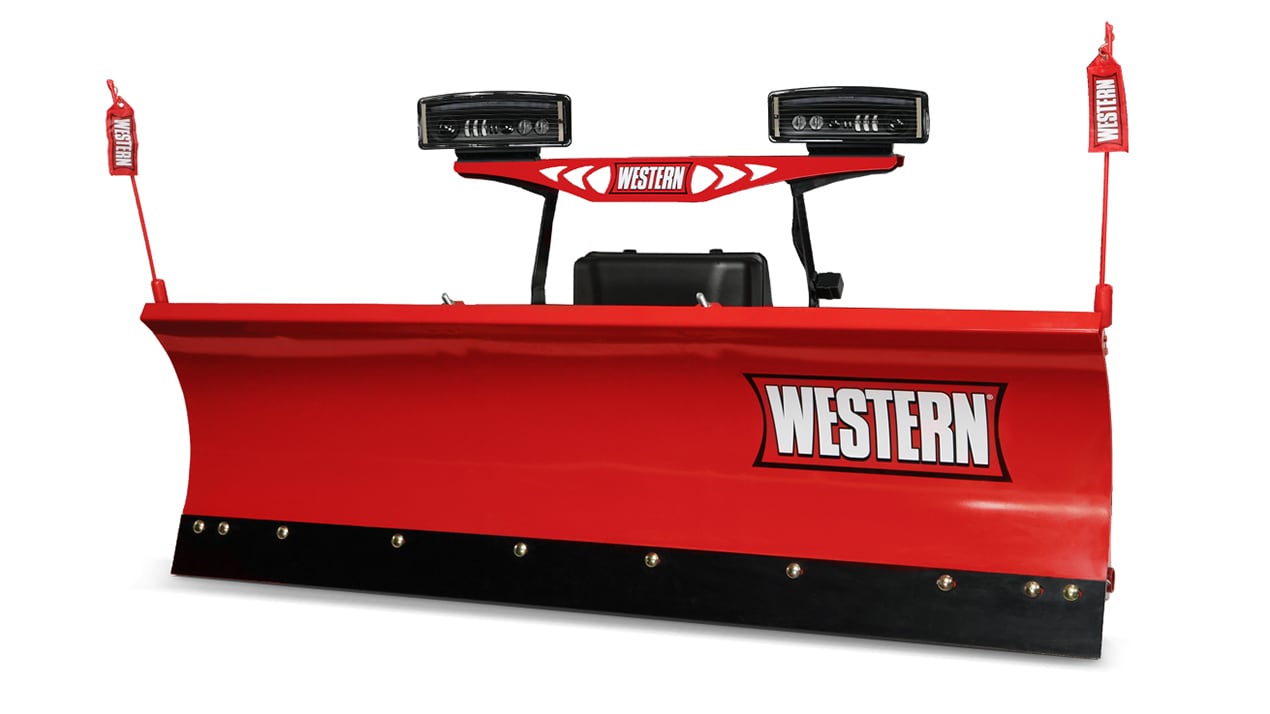

PLOW BLADE CONSTRUCTION


STRUCTURAL REINFORCEMENT

The reliable 14-gauge powder coated steel moldboard is 27" tall and 7' 6" wide for rugged snow plowing performance without the extra weight.

The HTS™ snow plow features an aggressive 75-degree attack angle for a clean scrape, and comes standard with a high carbon steel cutting edge that reduces wear and extends the life of the blade.
    Six vertical ribs and the exclusive WESTERN® POWER BAR provide unmatched structural reinforcement, delivering exceptional torsional strength and rigidity to eliminate blade twisting.

The high-strength steel base channel provides extra support along the bottom of the plow blade.

The 1" diameter pivot bolt secures the plow in place, ensuring proper alignment and reducing stress on the overall plow assembly.


Western HTS™ - RELIABLE HYDRAULICS



Western HTS™ - TRIP PROTECTION


RELIABLE HYDRAULICS


TRIP PROTECTION

We manufacture our own hydraulic components to ensure the highest standards of quality and reliability, so that you get a hydraulics system that's not only fast and responsive, but that's built to last season after season.

Fully enclosed components are protected from the elements.
    The two-spring trip blade protects your snow plow and truck when striking hidden obstacles.

Elastomeric bumpers reduce jarring and soften the blade return when tripping occurs, to extend the life of your truck and plow.








UNIVERSAL FEATURES






Contact a Hitch City near you to find out how to outfit your Western HTS™ Half-Ton Snowplow



Western HTS™ - NIGHTHAWK™ HEADLAMPS



Western HTS™ - ULTRAMOUNT® SNOWPLOW MOUNTING SYSTEM


NIGHTHAWK™ HEADLAMPS


ULTRAMOUNT® SNOWPLOW MOUNTING SYSTEM

Available in both LED and Dual-Halogen models, NIGHTHAWK headlamps are engineered and tested for maximum light output, performance and durability to keep you ahead of the storm.     The UltraMount® system is designed for fast and easy installation and removal using a simple mechanical system.

It features a robust one-piece design and is 100% compatible with UltraMount® 2 system mounts and electrical platforms.


Western HTS™ - FLEET FLEX ELECTRICAL SYSTEM



Western HTS™ - SECURITY GUARD™ ANTI-THEFT SYSTEM


FLEET FLEX ELECTRICAL SYSTEM


SECURITY GUARD™ ANTI-THEFT SYSTEM

The FLEET FLEX electrical system provides true fleet interchangeability. The same FLEET FLEX CabCommand hand-held or joystick control can operate any UltraMount® and UltraMount® 2 mounted plow on any truck at any time.     The exclusive WESTERN® SECURITY GUARD™ snowplow anti-theft system is a safe and secure way to electronically lock your snow plow when it is detached from your truck as a deterrent from theft.


Western HTS™ - CONTROL OPTIONS



Western HTS™ - ISOLATION MODULE


CONTROL OPTIONS


ISOLATION MODULE

Choose between a CabCommand hand-held control with push buttons or a joystick control, based on operator preference.

For efficient, precise and intuitive blade control while plowing, both controls feature power “on” and “float” LED lights, backlighting for night operation, and plug-in connector for easy removal.
    This advanced snow plow light and electrical system features improved electrical pins in the harness for trouble-free connections.

An underhood module improves system life and complies with OEM requirements. No toggle switch needed to change from vehicle to plow lights.


Western HTS™ - ULTRAFINISH™ BAKED-ON POWDER COAT



Western HTS™ - PRE-PUNCHED BLADES FOR ACCESSORIES


ULTRAFINISH™ BAKED-ON POWDER COAT


PRE-PUNCHED BLADES FOR ACCESSORIES

The ULTRAFINISH™ baked on powder coat with epoxy primer is standard on all WESTERN® plows, providing outstanding protection against wear and rust.     The blade is pre-punched for easy installation of accessories, providing a custom fit.

The pre-punched holes also prevent damage to the powder coat that can sometimes occur when installing an accessory.




PRODUCT SPECIFICATIONS






If you have questions about the Western HTS™ Half-Ton Snowplow, please call or contact us and we will be happy to assist you.


DOWNLOAD SNOWPLOW FULL-LINE BROCHURE
  Western Snowplow Full-Line Brochure




WESTERN HTS™ HALF-TON SNOWPLOW
Models   7' 6"
Blade Width   7' 6"
Blade Height   27"
Blade Gauge   14
Trip Springs   2
Vertical Ribs   6
Lift Cylinder   2" x 6 ¾"
Angling Rams   1½" x 8"
Plowing Width (Full Angle)   6' 7"
Aprox Weight*   412 lbs
Cutting Edge   5/16" x 6"
Mount Type   Ultra Mount®
*Does not include vehicle mount. Please contact a Hitch City associate for specific vehicle application details.
