MVP Plus








V-PLOW PERFORMANCE



Like all WESTERN® products, the MVP PLUS™ v-plow is built for efficiency, durability and performance—but it also gives you the added level of productivity that only a v-plow can achieve, letting you cut through deep banks and clear more snow in fewer passes.


WESTERN® MVP PLUS™ V-Plow









UNIQUE FEATURES






Western MVP PLUS™ - PLOW BLADE CONSTRUCTION



Western MVP PLUS™ - STRUCTURAL REINFORCEMENT

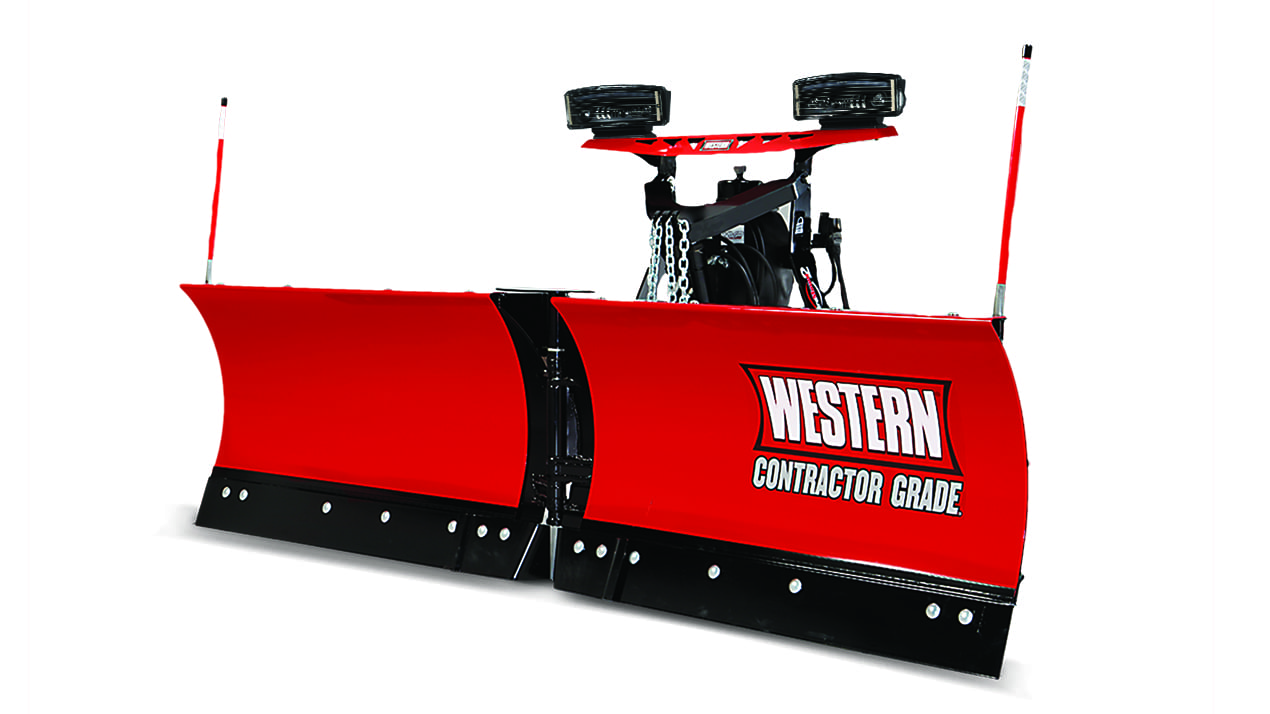

PLOW BLADE CONSTRUCTION



STRUCTURAL REINFORCEMENT


The MVP PLUS™ v-plow is available in 14-gauge powder coated steel or 1/4" high-density polyethylene in 7' 6", 8' 6" and 9' 6" widths.

The durable poly blade provides a slick surface for enhanced snow-rolling action and a maintenance-free surface. The steel blade features our high quality ULTRAFINISH™ powder coated surface.

The 70-degree attack angle provides a clean scrape, and a high carbon steel cutting edge comes standard, reducing wear and extending the life of the blade.
    Six vertical ribs on the 7' 6" models and eight on the 8' 6" and 9' 6" models, combined with the exclusive WESTERN® POWER BAR, provide exceptional torsional strength and rigidity to eliminate blade twisting.

The high-strength steel base channel provides extra support along the bottom of the plow blade.

A 1" diameter steel center pin resides within a two connection point hinge, keeping the wings tight for optimal performance.


Western MVP PLUS™ - DOUBLE-ACTING CYLINDERS



Western MVP PLUS™ - STEEL CENTER GAP COVER


DOUBLE-ACTING CYLINDERS



STEEL CENTER GAP COVER


As a standard feature on the MVP PLUS™, UltraLock double-acting cylinders allow the operator to use the v-plow in straight blade mode by locking the wings together instead of having to toggle each wing independently.

The double-acting cylinders also hold the wings firmly in place for clean, efficient back dragging.

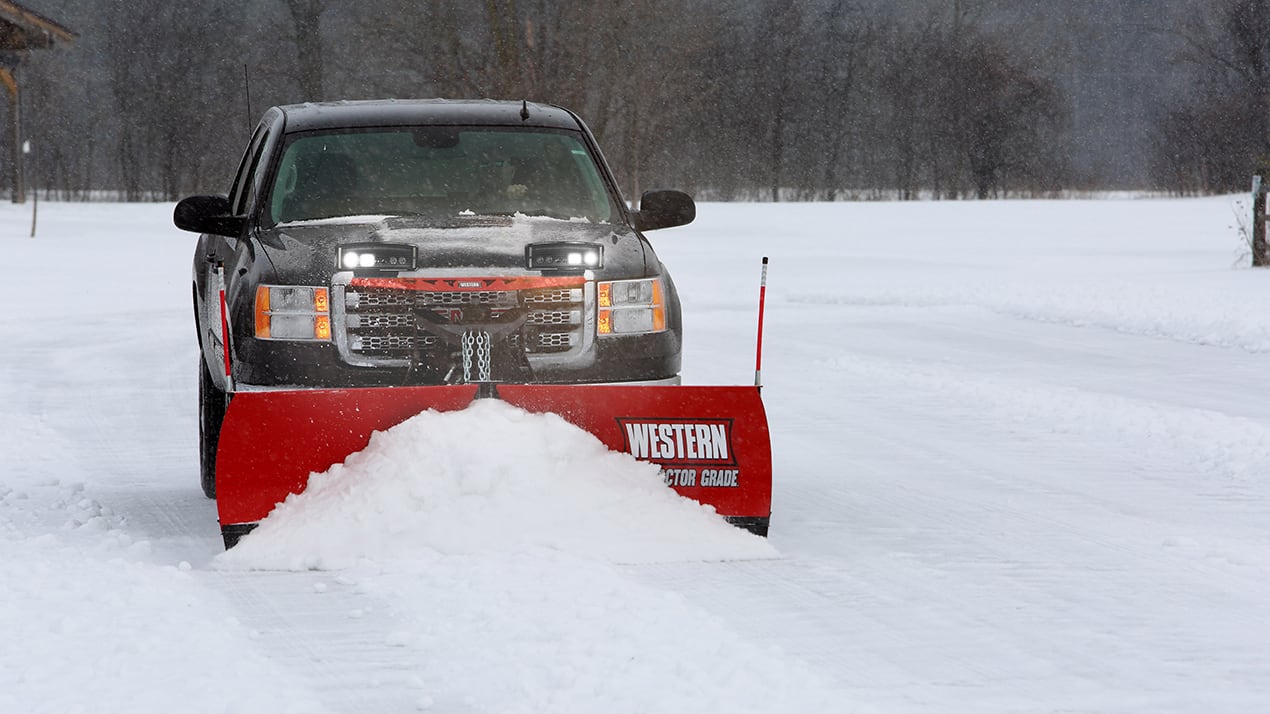

    For the cleanest pass in any position, the MVP PLUS™ v-plow has a snow control deflector over the center hinge to help prevent snow from being lost over the top.


Western MVP PLUS™ - RELIABLE HYDRAULICS



Western MVP PLUS™ - TRIP PROTECTION


RELIABLE HYDRAULICS



TRIP PROTECTION


We manufacture our own hydraulic components to ensure the highest standards of quality and reliability, so that you get a hydraulics system that's not only fast and responsive, but that's built to last season after season.

Fully enclosed components are protected from the elements.
    Each blade features independent trip-edge design with heavy-duty coil springs for protection when encountering bumps and obstacles. Whether in V, scoop, or straight blade configuration, the trip edge helps protect the plow, the truck, and the operator. Since only the edge trips, snow remains in front of the blade, so you can keep going without spilling the entire load of snow.








UNIVERSAL FEATURES






Contact a Hitch City near you to find out how to outfit your Western MVP PLUS™ V-Plow



Western MVP PLUS™ - NIGHTHAWK™ HEADLAMPS



Western MVP PLUS™ - ULTRAMOUNT® SNOWPLOW MOUNTING SYSTEM


NIGHTHAWK™ HEADLAMPS



ULTRAMOUNT® 2 SNOWPLOW MOUNTING SYSTEM


Available in both LED and Dual-Halogen models, NIGHTHAWK headlamps are engineered and tested for maximum light output, performance and durability to keep you ahead of the storm.     The UltraMount® 2 system is designed for fast and easy installation and removal using a simple mechanical system.

It features a robust one-piece design and is 100% compatible with UltraMount® system mounts and electrical platforms.


Western MVP PLUS™ - CHAIN LIFT SYSTEM



Western MVP PLUS™ - FLEET FLEX ELECTRICAL SYSTEM


CHAIN LIFT SYSTEM



FLEET FLEX ELECTRICAL SYSTEM


The mechanical chain lift system offers a variety of performance and reliability advantages over a hydraulic system.     The FLEET FLEX electrical system provides true fleet interchangeability. The same FLEET FLEX CabCommand hand-held or joystick control can operate any UltraMount® and UltraMount® 2 mounted plow on any truck at any time.


Western MVP PLUS™ - SECURITY GUARD™ ANTI-THEFT SYSTEM



Western MVP PLUS™ - CONTROL OPTIONS


SECURITY GUARD™ ANTI-THEFT SYSTEM



CONTROL OPTIONS


The exclusive WESTERN® SECURITY GUARD™ snowplow anti-theft system is a safe and secure way to electronically lock your snow plow when it is detached from your truck as a deterrent from theft.     Choose between a CabCommand hand-held control with push buttons or a joystick control, based on operator preference.

For efficient, precise and intuitive blade control while plowing, both controls feature power “on” and “float” LED lights, backlighting for night operation, and plug-in connector for easy removal.


Western MVP PLUS™ - ISOLATION MODULE



Western MVP PLUS™ - ULTRAFINISH™ BAKED-ON POWDER COAT


ISOLATION MODULE



ULTRAFINISH™ BAKED-ON POWDER COAT



This advanced snow plow light and electrical system features improved electrical pins in the harness for trouble-free connections.

An underhood module improves system life and complies with OEM requirements. No toggle switch needed to change from vehicle to plow lights.
    The ULTRAFINISH™ baked on powder coat with epoxy primer is standard on all WESTERN® plows, providing outstanding protection against wear and rust.


Western MVP PLUS™ - PRE-PUNCHED BLADES FOR ACCESSORIES



PRE-PUNCHED BLADES FOR ACCESSORIES



The blade is pre-punched for easy installation of accessories, providing a custom fit.

The pre-punched holes also prevent damage to the powder coat that can sometimes occur when installing an accessory.





PRODUCT SPECIFICATIONS





If you have questions about which Western MVP PLUS™ V-Plow is best for you, please call or contact us and we will be happy to assist you.


DOWNLOAD SNOWPLOW FULL-LINE BROCHURE
  Western Snowplow Full-Line Brochure



WESTERN MVP PLUS™ V-PLOW
Models   7' 6"   8' 6"   9' 6"   7' 6" Poly   8' 6" Poly   9' 6" Poly
Blade Width   7' 6"   8' 6"   9' 6"   7' 6"   8' 6"   9' 6"
Blade Height   29"   29"   31"   29"   29"   31"
Blade Gauge   14   14   14   ¼" Poly   ¼" Poly   ¼" Poly
Trip Springs   4   4   6   4   4   6
Vertical Ribs   6   8   8   6   8   8
Lift Cylinder   1 ½" x 8"   1 ½" x 8"   1 ½" x 8"   1 ½" x 8"   1 ½" x 8"   1 ½" x 8"
Angling Rams   1 ¾" x 11"   1 ¾" x 11"   1 ¾" x 11"   1 ¾" x 11"   1 ¾" x 11"   1 ¾" x 11"
Plowing Width   6' 6" Full Angle
6' 3" Scoop
6' 9" Full V
  7' 5" Full Angle
7' 1" Scoop
7' 7" Full V
  8' 3" Full Angle
7' 11" Scoop
8' 7" Full V
  6' 6" Full Angle
6' 3" Scoop
6' 9" Full V
  7' 5" Full Angle
7' 1" Scoop
7' 7" Full V
  8' 3" Full Angle
7' 11" Scoop
8' 7" Full V
Approx. Weight*   827 lb   880 lb   988 lb   799 lb   847 lb   964 lb
Cutting Edge   3/8" x 6"   3/8" x 6"   ½" x 6"   3/8" x 6"   3/8" x 6"   ½" x 6"
Mount Type   UltraMount® 2   UltraMount® 2   UltraMount® 2   UltraMount® 2   UltraMount® 2   UltraMount® 2
*Does not include vehicle mount. Please contact a Hitch City associate for specific vehicle application details.
