Pro Plus
HEAVY-DUTY CONTRACTOR GRADE® PERFORMANCE

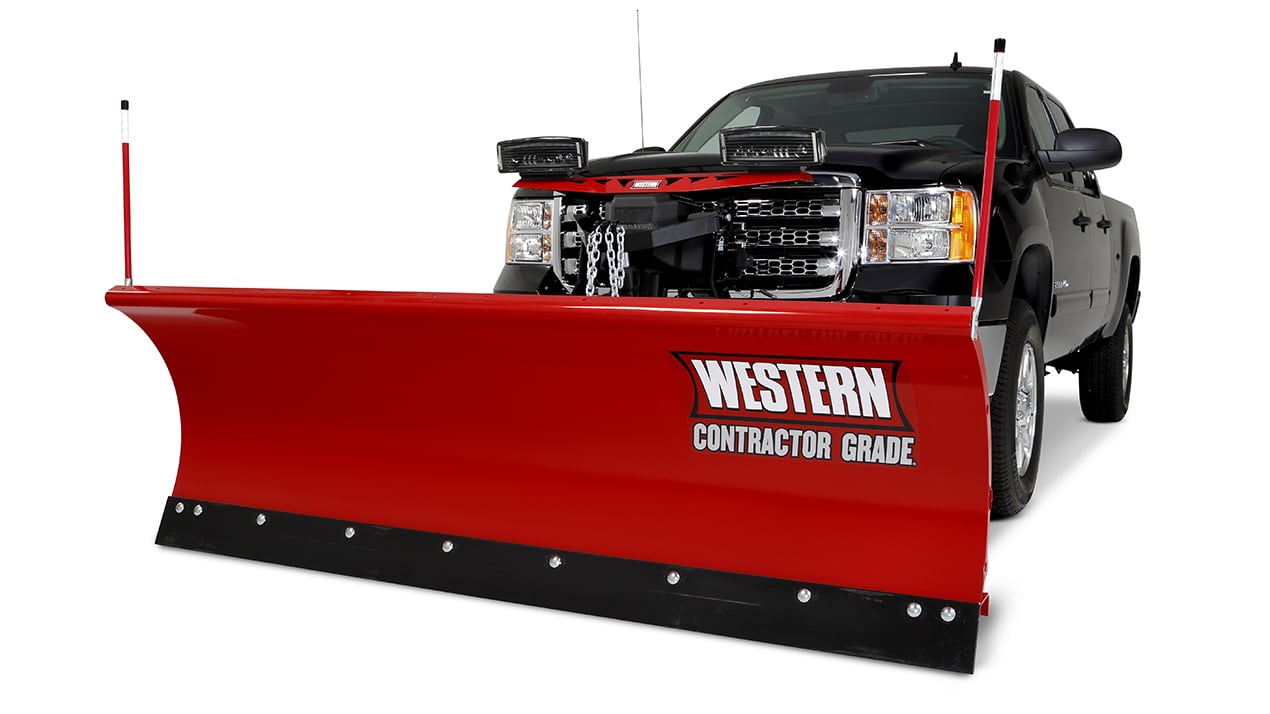

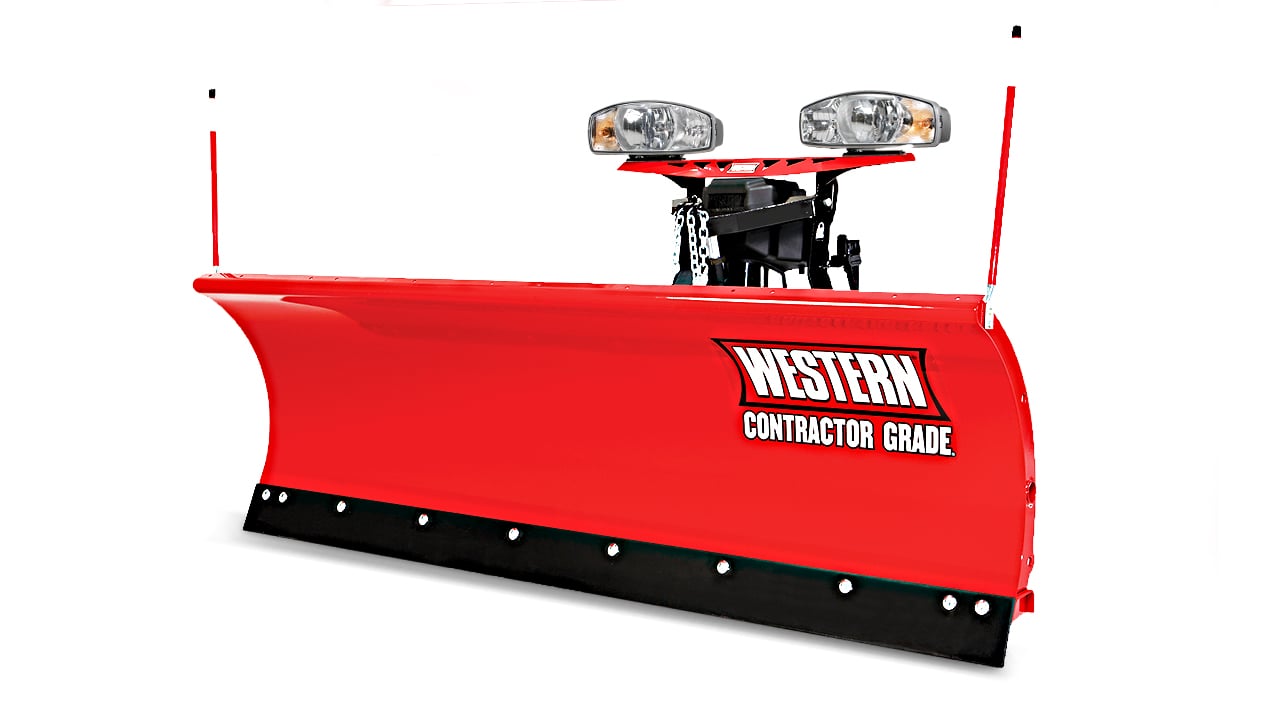

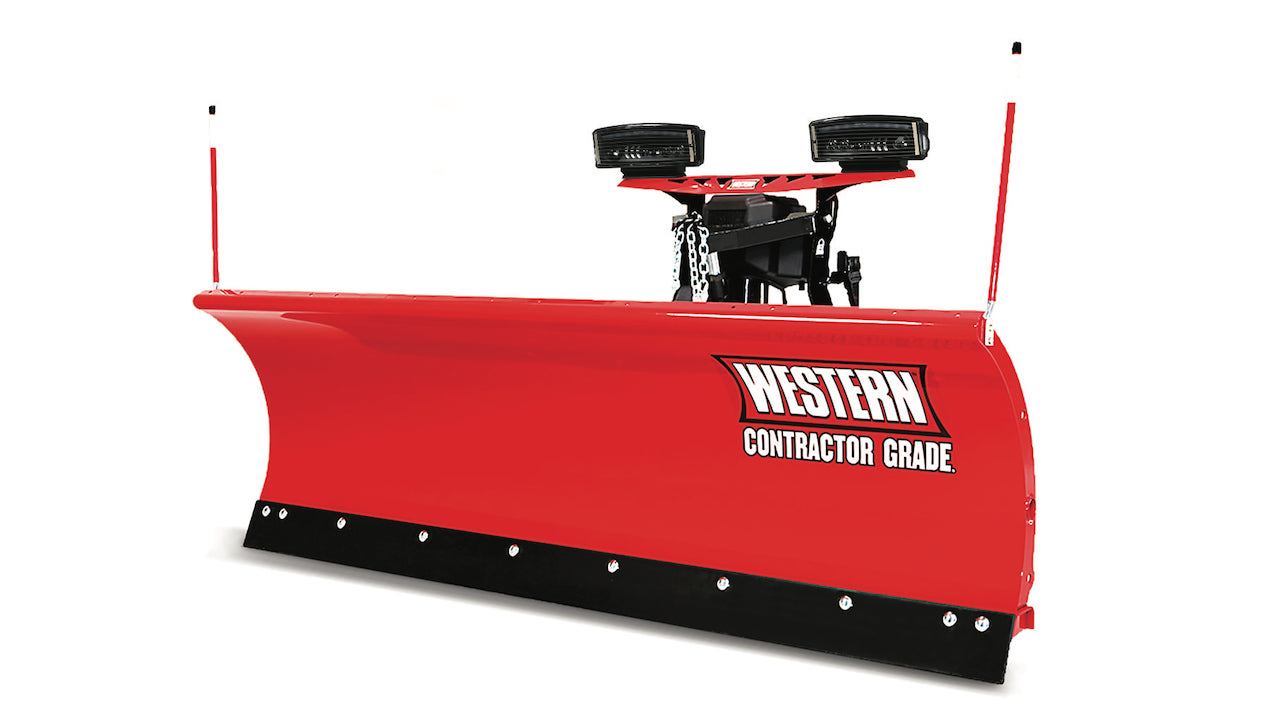

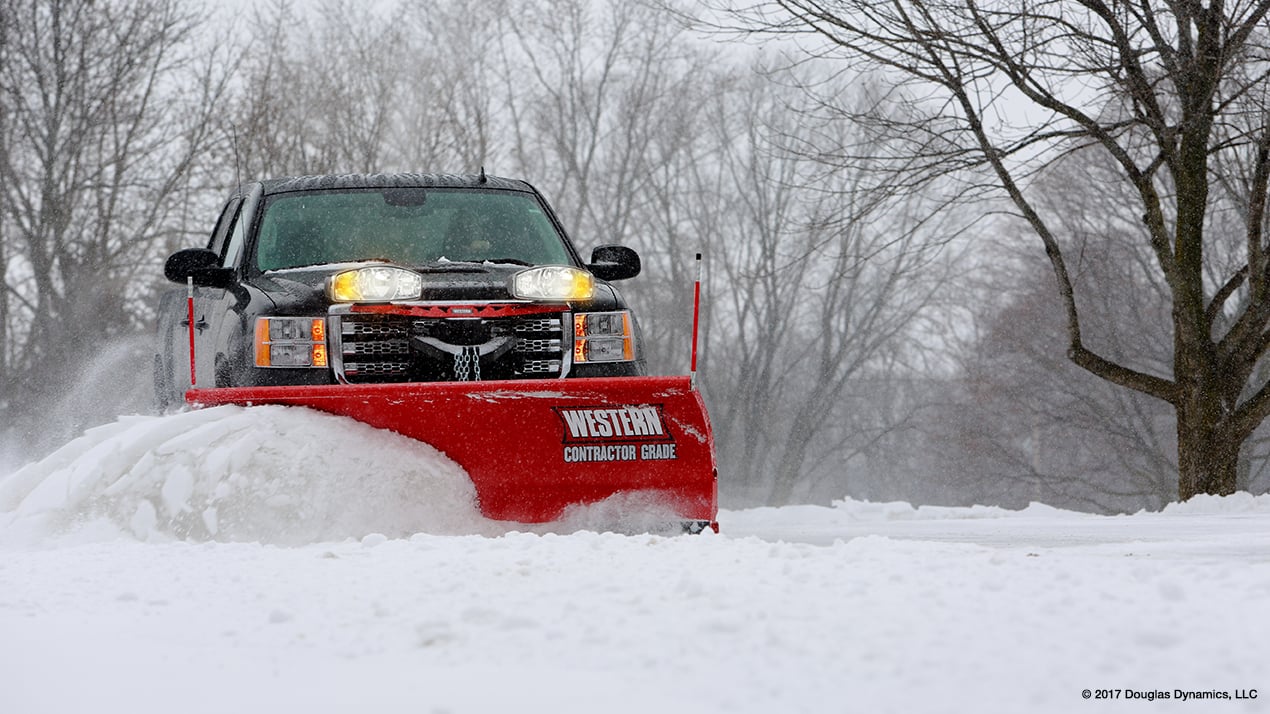

Give winter all you've got with the WESTERN® PRO PLUS® snow plow. Designed to fit a wide range of vehicles, this rugged straight blade is the ultimate tool for the toughest commercial operations.
|
|
|
PLOW BLADE CONSTRUCTION |
STRUCTURAL REINFORCEMENT |
|||
The robust 12-gauge powder coated steel moldboard is a full 31½" tall and comes in 8', 8' 6", and 9' widths. The PRO PLUS® blade features a 65-degree attack angle, and a high carbon steel cutting edge comes standard, reducing wear and extending the life of the blade. |

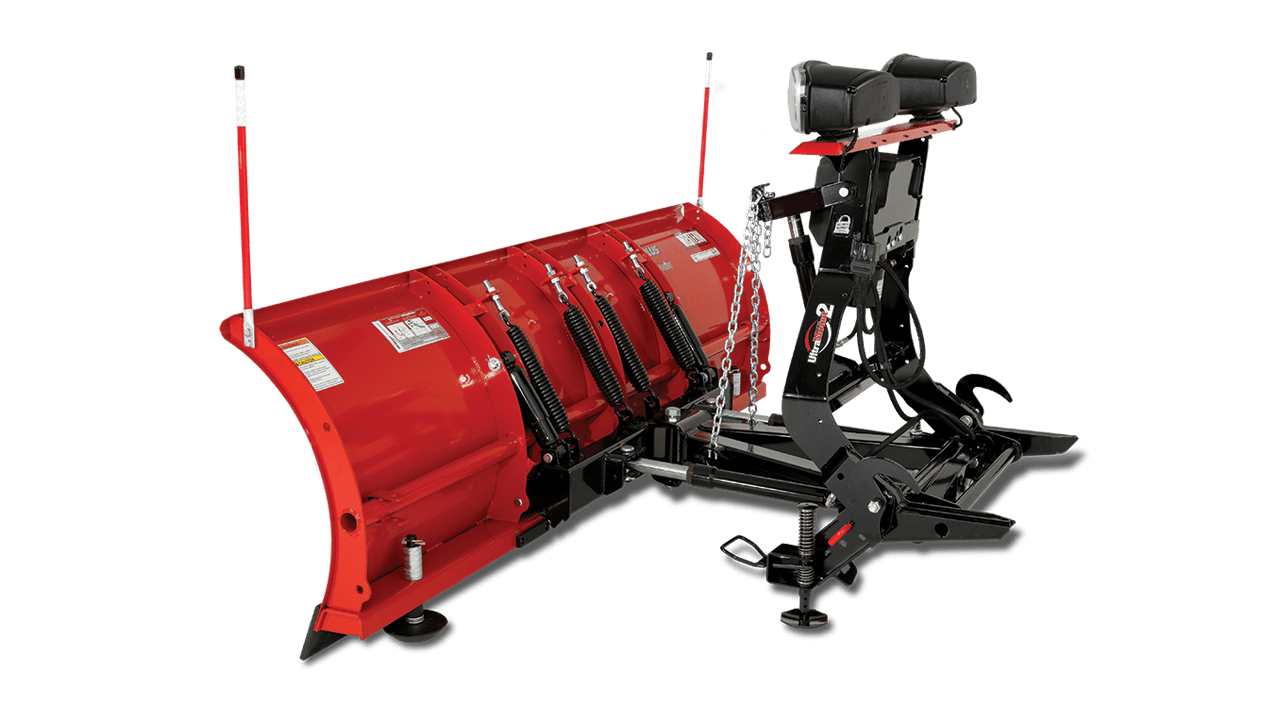

Eight vertical ribs, a heavy-duty quadrant, and the exclusive WESTERN® POWER BAR provide exceptional torsional strength and rigidity, to eliminate blade twisting even under the most brutal conditions. The high-strength steel base channel provides extra support along the bottom of the plow blade. The 1" diameter pivot bolt secures the plow in place, ensuring proper alignment and reducing stress on the overall plow assembly. |
|||
RELIABLE HYDRAULICS |
TRIP PROTECTION |
|||
We manufacture our own hydraulic components to ensure the highest standards of quality and reliability, so that you get a hydraulics system that's not only fast and responsive, but that's built to last season after season. Fully enclosed components are protected from the elements. |
Four heavy-duty coil springs protect your plow and truck by allowing the whole blade to trip when striking obstacles. Dual shock absorbers reduce jarring and soften the blade return when tripping occurs, to extend the life of your truck and plow. |
|||
PRO PLUS® FOR SKID-STEERS |
||||
The PRO PLUS® snowplow is also available with skid-steer mounting options. Contact a Hitch City near you to find out pricing, customization and applications of a skid-steer PRO PLUS® snowplow. |
||||
|
|
|
Contact a Hitch City near you to find out how to outfit your Western PRO-PLUS® Snowplow
NIGHTHAWK™ HEADLAMPS |
ULTRAMOUNT® 2 SNOWPLOW MOUNTING SYSTEM |
|||
Available in both LED and Dual-Halogen models, NIGHTHAWK headlamps are engineered and tested for maximum light output, performance and durability to keep you ahead of the storm. | The UltraMount® 2 system is designed for fast and easy installation and removal using a simple mechanical system. It features a robust one-piece design and is 100% compatible with UltraMount® system mounts and electrical platforms. |
|||
CHAIN LIFT SYSTEM |
FLEET FLEX ELECTRICAL SYSTEM |
|||
The mechanical chain lift system offers a variety of performance and reliability advantages over a hydraulic system. | The FLEET FLEX electrical system provides true fleet interchangeability. The same FLEET FLEX CabCommand hand-held or joystick control can operate any UltraMount® and UltraMount® 2 mounted plow on any truck at any time. | |||
SECURITY GUARD™ ANTI-THEFT SYSTEM |
CONTROL OPTIONS |
|||
The exclusive WESTERN® SECURITY GUARD™ snowplow anti-theft system is a safe and secure way to electronically lock your snow plow when it is detached from your truck as a deterrent from theft. | Choose between a CabCommand hand-held control with push buttons or a joystick control, based on operator preference. For efficient, precise and intuitive blade control while plowing, both controls feature power “on” and “float” LED lights, backlighting for night operation, and plug-in connector for easy removal. |
|||
ISOLATION MODULE |
ULTRAFINISH™ BAKED-ON POWDER COAT |
|||
This advanced snow plow light and electrical system features improved electrical pins in the harness for trouble-free connections. An underhood module improves system life and complies with OEM requirements. No toggle switch needed to change from vehicle to plow lights. |
The ULTRAFINISH™ baked on powder coat with epoxy primer is standard on all WESTERN® plows, providing outstanding protection against wear and rust. | |||
PRE-PUNCHED BLADES FOR ACCESSORIES |
||||
The blade is pre-punched for easy installation of accessories, providing a custom fit. The pre-punched holes also prevent damage to the powder coat that can sometimes occur when installing an accessory. |
||||
PRODUCT SPECIFICATIONS
If you have questions about which Western PRO-PLUS® Snowplow is best for you, please call or contact us and we will be happy to assist you. |
DOWNLOAD SNOWPLOW FULL-LINE BROCHURE |
||||
WESTERN PRO-PLUS® SNOWPLOW | ||||||
Models | 8' | 8' 6" | 9' | |||
Blade Width | 8' | 8' 6" | 9' | |||
Blade Height | 31 ½" | 31 ½" | 31 ½" | |||
Blade Gauge | 12 | 12 | 12 | |||
Trip Springs | 4 | 4 | 4 | |||
Shock Absorbers | 2 | 2 | 2 | |||
Vertical Ribs | 8 | 8 | 8 | |||
Lift Cylinder | 1 ½" x 8" | 1 ½" x 8" | 1 ½" x 8" | |||
Angling Rams | 1 ½" x 12" | 1 ½" x 12" | 1 ½" x 12" | |||
Plowing Width (Full Angle) | 6' 11" | 7' 4" | 7' 9" | |||
Approx. Weight* | 805 lb | 821 lb | 837 lb | |||
Disc Shoes | Cast Iron | Cast Iron | Cast Iron | |||
Cutting Edge | ½" x 6" | ½" x 6" | ½" x 6" | |||
Mount Type | UltraMount® 2 | UltraMount® 2 | UltraMount® 2 | |||
*Does not include vehicle mount. Please contact a Hitch City associate for specific vehicle application details. |

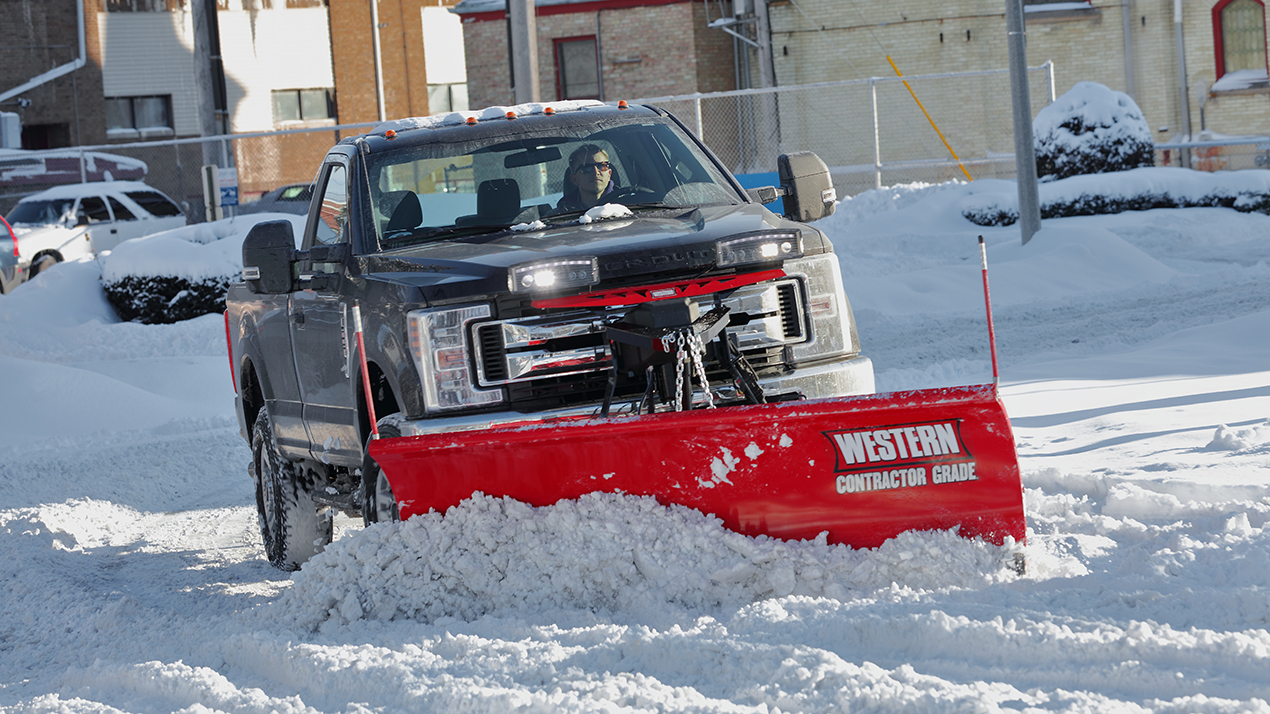

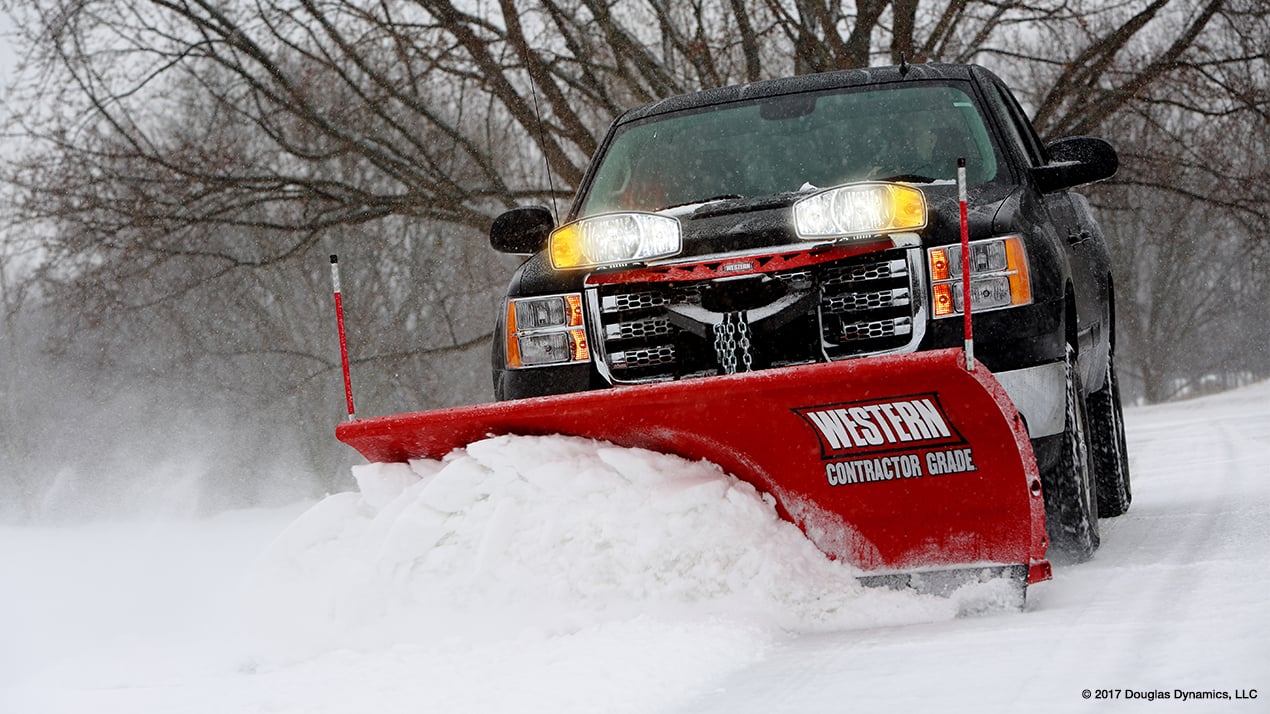

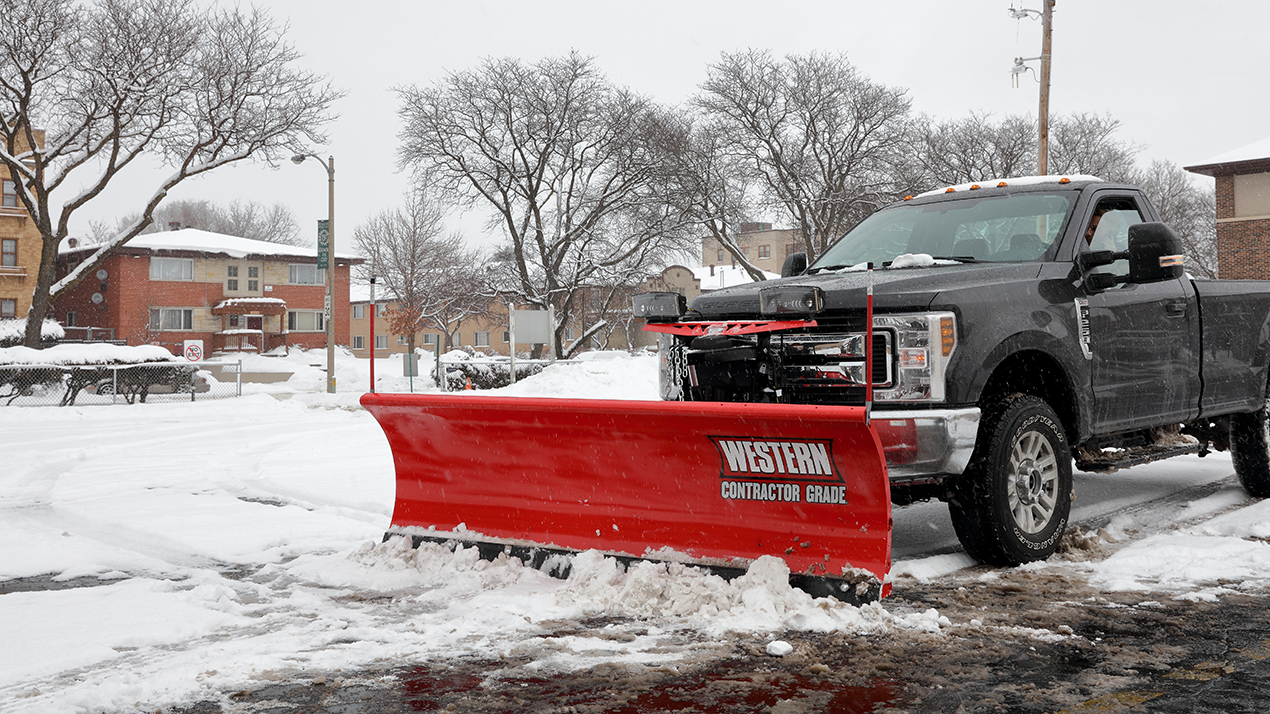

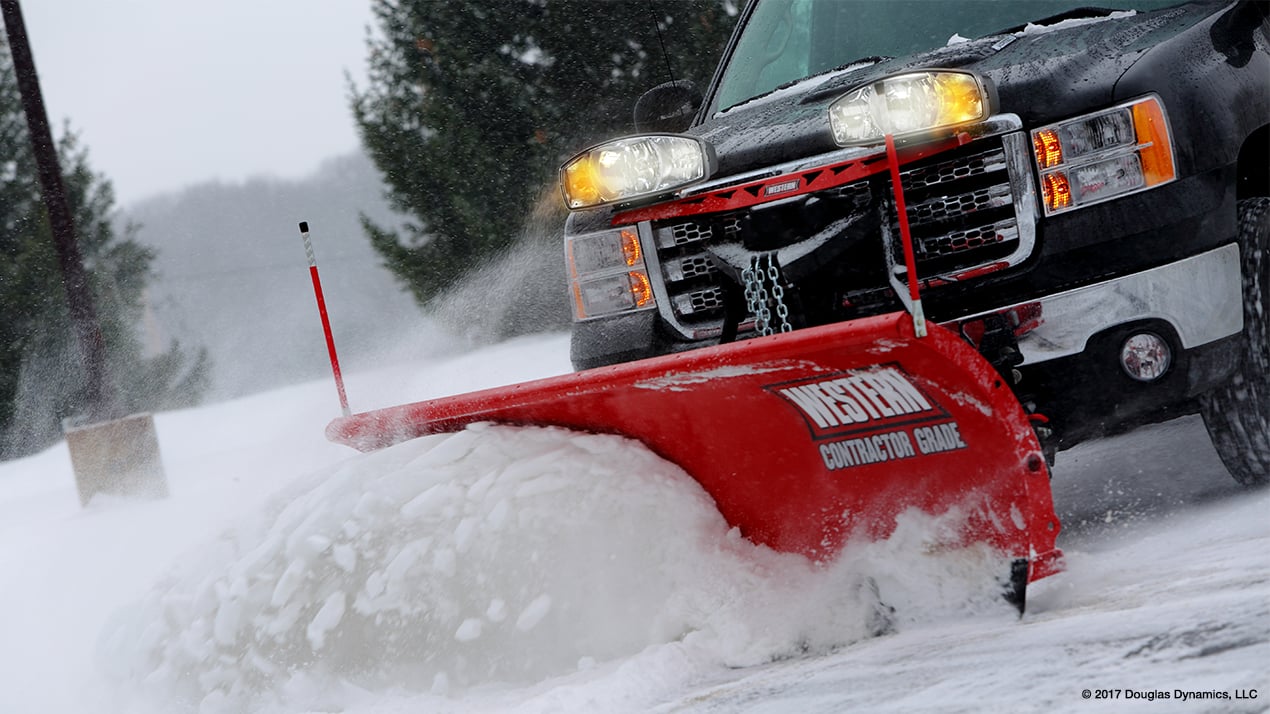

WESTERN PRO-PLUS® SNOWPLOW GALLERY
×
