Wide Out
ADAPT TO WHATEVER THE WEATHER THROWS YOUR WAY
Adapt to whatever the weather throws your way with the WESTERN® WIDE-OUT™ and WIDE-OUT™ XL adjustable wing snowplows. Offered in two blade sizes, the WIDE-OUT XL model extends from 8' 6" to 11' in straight blade mode, making it the widest WESTERN plow for truck applications. The plows are our tallest winged plows at 31" and feature independently controlled, flared wings that retract at the push of a button to maneuver in smaller and tighter areas.
|
|
|
PLOW BLADE CONSTRUCTION |
EXPANDABLE TO 11' |
|||||
A 31" tall, 14-gauge steel moldboard comes standard with a ½" high-carbon steel cutting edge on the moldboard and the wings, ensuring a clean scrape on every pass while reducing wear and extending the life of the blade. | Available in two sizes, the WIDE-OUT blade expands from 8' wide to 10' wide and the WIDE-OUT XL plow extends from 8'6" to a full 11', to move more snow in fewer passes. | |||||
STRUCTURAL REINFORCEMENT |
HEAVY-DUTY SLIDE BOX |
|||||
Six vertical ribs—eight on the WIDE-OUT XL model—a heavy-duty quadrant, and a dual WESTERN® POWER BAR provide exceptional torsional strength and rigidity across the entire back of the plow blade to eliminate blade twisting. A high-strength steel base channel provides extra support along the bottom of the plow blade. |
The structurally-reinforced slide box is constructed with 3/16" heavy-grade steel, ensuring your plows are up to the task, no matter how large. | |||||
FLARED WINGS FOR EFFICIENCY |
RELIABLE HYDRAULICS |
|||||
The WIDE-OUT plows, equipped with flared wings as tall as 36" on the WIDE-OUT XL model, help move snow up to 30% faster. Providing unmatched versatility and efficiency, operators can control each wing independently to move into Retracted Straight, Expanded Straight, Windrow and Scoop positions, all at the touch of a button. |
We manufacture our own hydraulic components to ensure the highest standards of quality and reliability, so that you get a hydraulics system that's not only fast and responsive, but that's built to last season after season. Fully enclosed components are protected from the elements. |
|||||
TRIP PROTECTION |
||||||
Four heavy-duty coil springs protect your plow and truck by allowing the whole blade to trip when striking obstacles. Like the moldboard, the WIDE-OUT™ plow’s wings will trip in any position—including scoop—letting you easily pass over obstacles to get the job done. |
||||||
|
|
|
Contact a Hitch City near you to find out how to outfit your Western WIDE-OUT™ AND WIDE-OUT™ XL Adjustable Wing Snowplows
NIGHTHAWK™ HEADLAMPS |
ULTRAMOUNT® 2 SNOWPLOW MOUNTING SYSTEM |
|||
Available in both LED and Dual-Halogen models, NIGHTHAWK headlamps are engineered and tested for maximum light output, performance and durability to keep you ahead of the storm. | The UltraMount® 2 system is designed for fast and easy installation and removal using a simple mechanical system. It features a robust one-piece design and is 100% compatible with UltraMount® system mounts and electrical platforms. |
|||
CHAIN LIFT SYSTEM |
FLEET FLEX ELECTRICAL SYSTEM |
|||
The mechanical chain lift system offers a variety of performance and reliability advantages over a hydraulic system. | The FLEET FLEX electrical system provides true fleet interchangeability. The same FLEET FLEX CabCommand hand-held or joystick control can operate any UltraMount® and UltraMount® 2 mounted plow on any truck at any time. | |||
SECURITY GUARD™ ANTI-THEFT SYSTEM |
CONTROL OPTIONS |
|||
The exclusive WESTERN® SECURITY GUARD™ snowplow anti-theft system is a safe and secure way to electronically lock your snow plow when it is detached from your truck as a deterrent from theft. | Choose between a CabCommand hand-held control with push buttons or a joystick control, based on operator preference. For efficient, precise and intuitive blade control while plowing, both controls feature power “on” and “float” LED lights, backlighting for night operation, and plug-in connector for easy removal. |
|||
ISOLATION MODULE |
ULTRAFINISH™ BAKED-ON POWDER COAT |
|||
This advanced snow plow light and electrical system features improved electrical pins in the harness for trouble-free connections. An underhood module improves system life and complies with OEM requirements. No toggle switch needed to change from vehicle to plow lights. |
The ULTRAFINISH™ baked on powder coat with epoxy primer is standard on all WESTERN® plows, providing outstanding protection against wear and rust. | |||
PRE-PUNCHED BLADES FOR ACCESSORIES |
||||
The blade is pre-punched for easy installation of accessories, providing a custom fit. The pre-punched holes also prevent damage to the powder coat that can sometimes occur when installing an accessory. |
||||
PRODUCT SPECIFICATIONS
If you have questions about the Western WIDE-OUT™ AND WIDE-OUT™ XL Adjustable Wing Snowplows, please call or contact us and we will be happy to assist you. |
DOWNLOAD WIDE-OUT™ Adjustable Wing Snowplow Sell Sheet |
DOWNLOAD SNOWPLOW FULL-LINE BROCHURE |
||||||||
WESTERN WIDE-OUT™ & WIDE-OUT™ XL ADJUSTABLE WING SNOWPLOWS | ||||
Models | 8'-10' (#180210-higher) | 8'6"-11' | ||
Blade Width | 8' Retracted 10' Expanded 8' 10" Scoop |
8' 6" Retracted 11' Expanded 9' 10" Scoop |
||
Blade Height | 31" on Moldboard 35" at End |
31" on Moldboard 36" at End |
||
Blade Gauge | 14 | 14 | ||
Trip Springs | 4 | 4 | ||
Vertical Ribs | 6 | 8 | ||
Plowing Width | 7' 2" Retracted 9' Expanded 7' 11" Scoop |
7'11" Retracted 10' 6" Expanded 9' 6" Scoop |
||
Approx. Weight* | 1,020 lb | 1,090 lb | ||
Cutting Edge | ½" x 6" | ½" x 6" | ||
Mount Type | UltraMount® 2 | UltraMount® 2 | ||
*Does not include vehicle mount. Please contact a Hitch City associate for specific vehicle application details. |

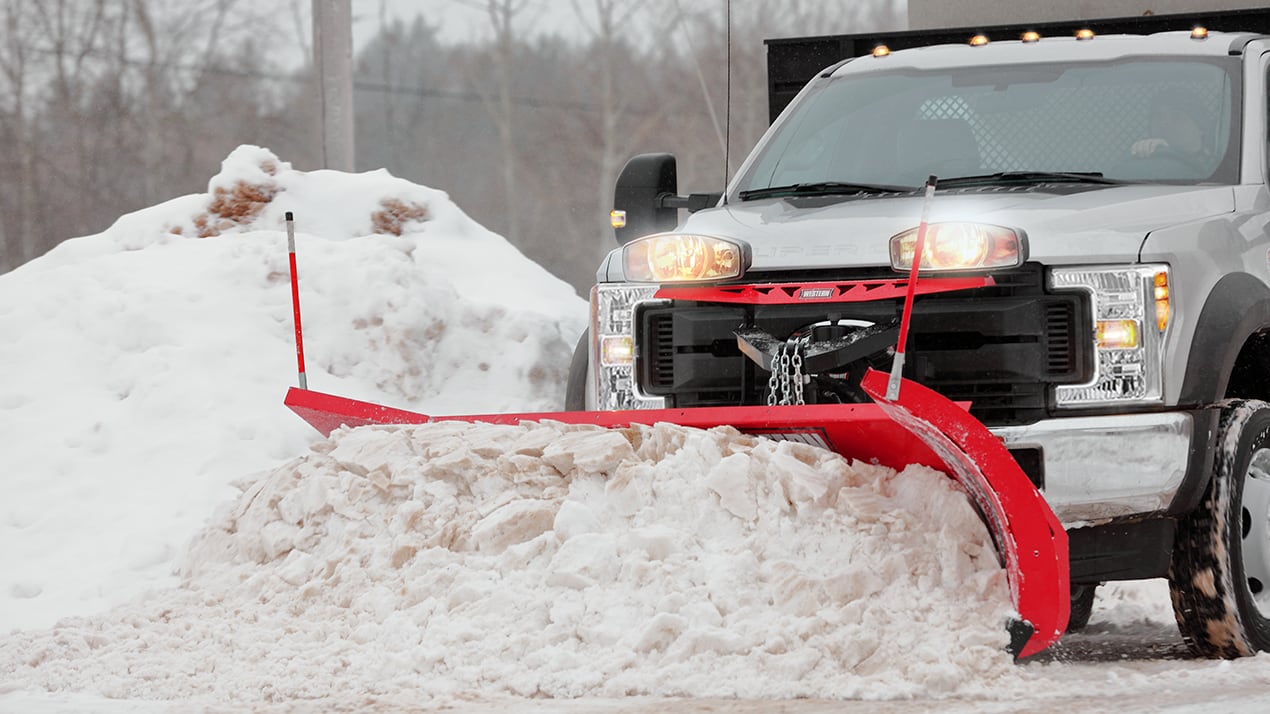

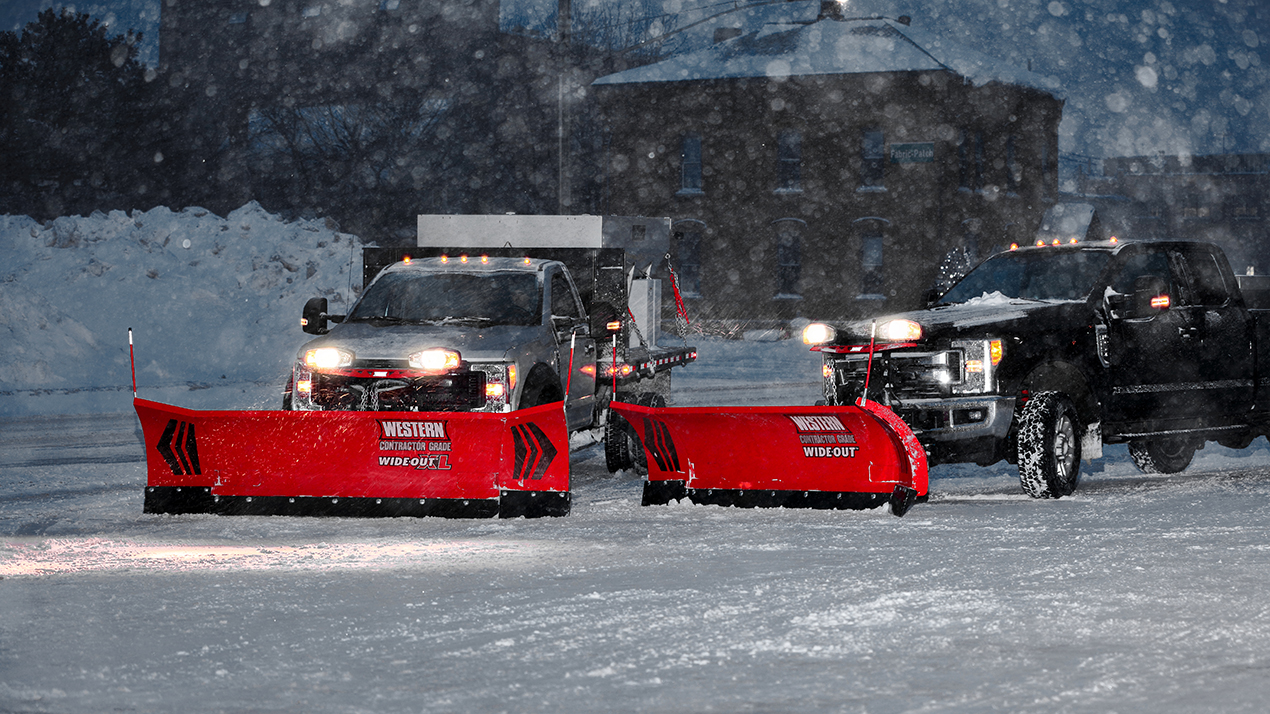

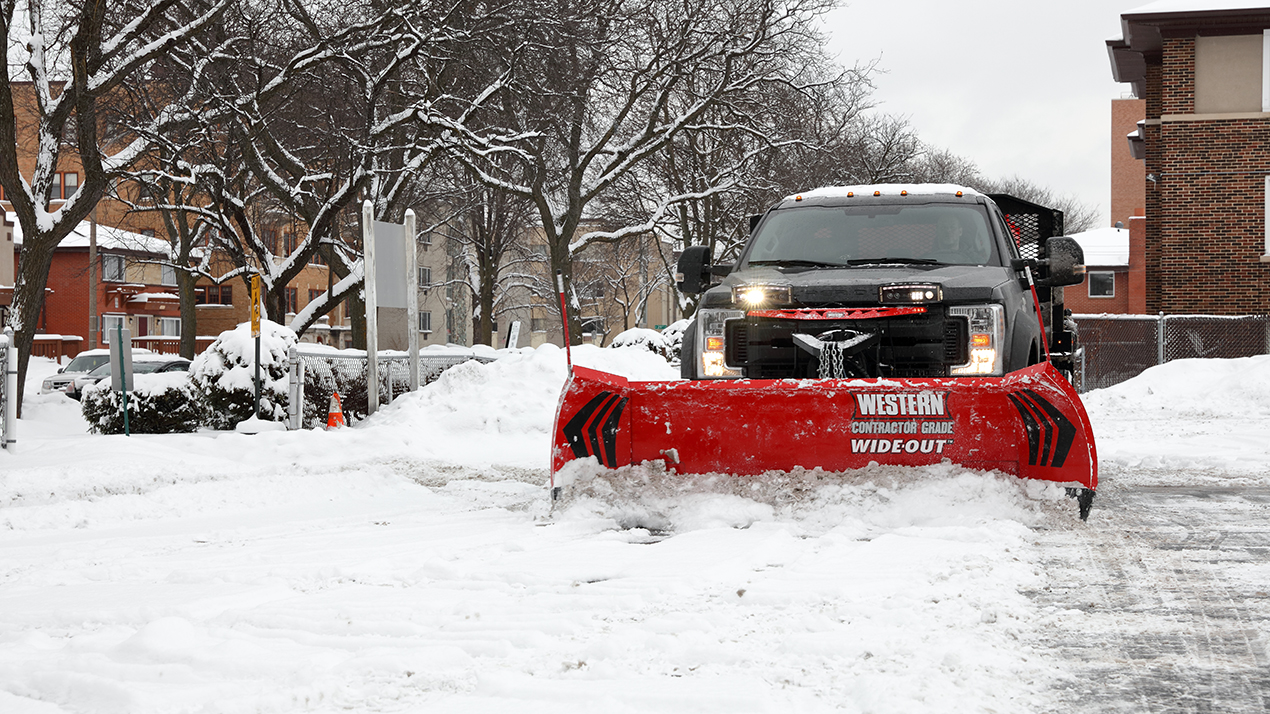

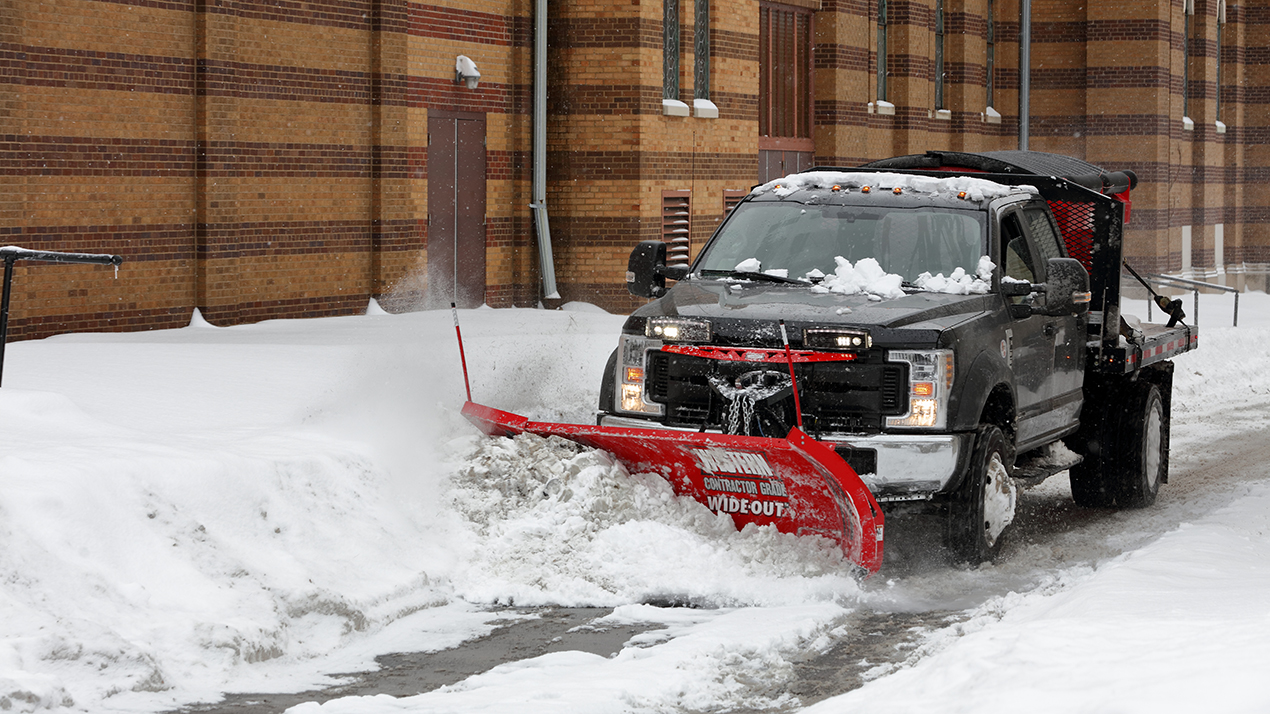

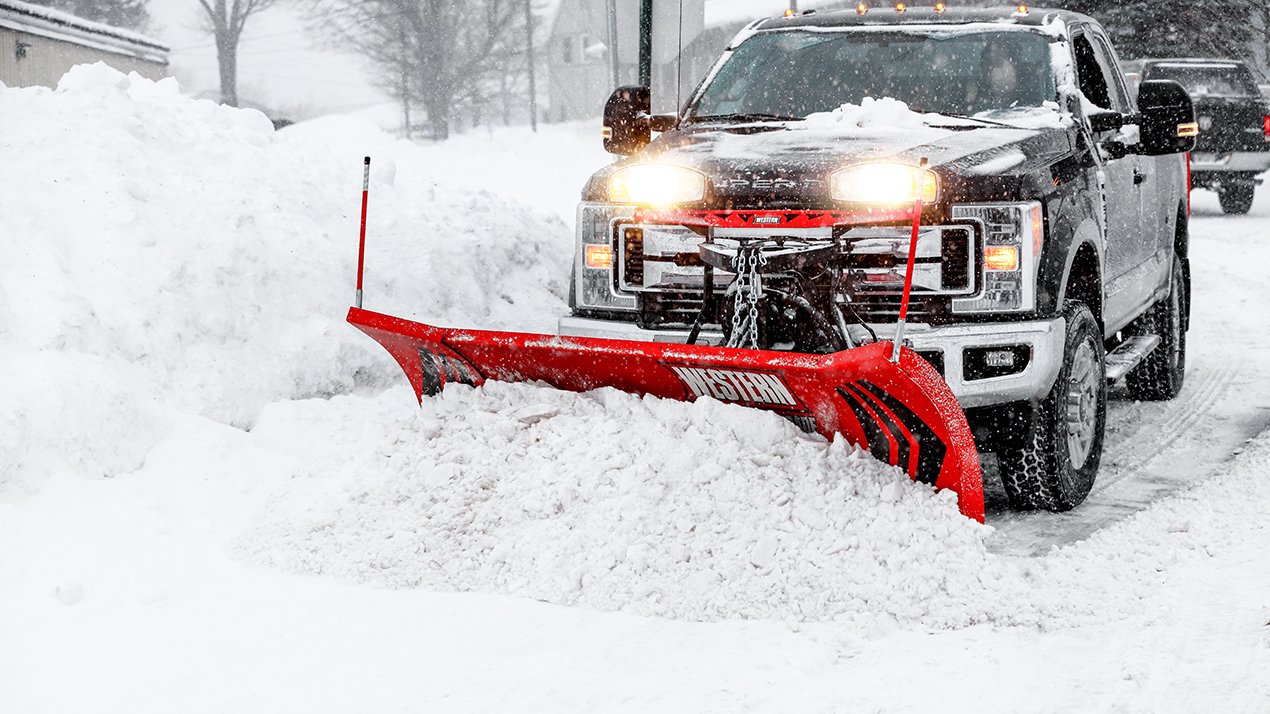

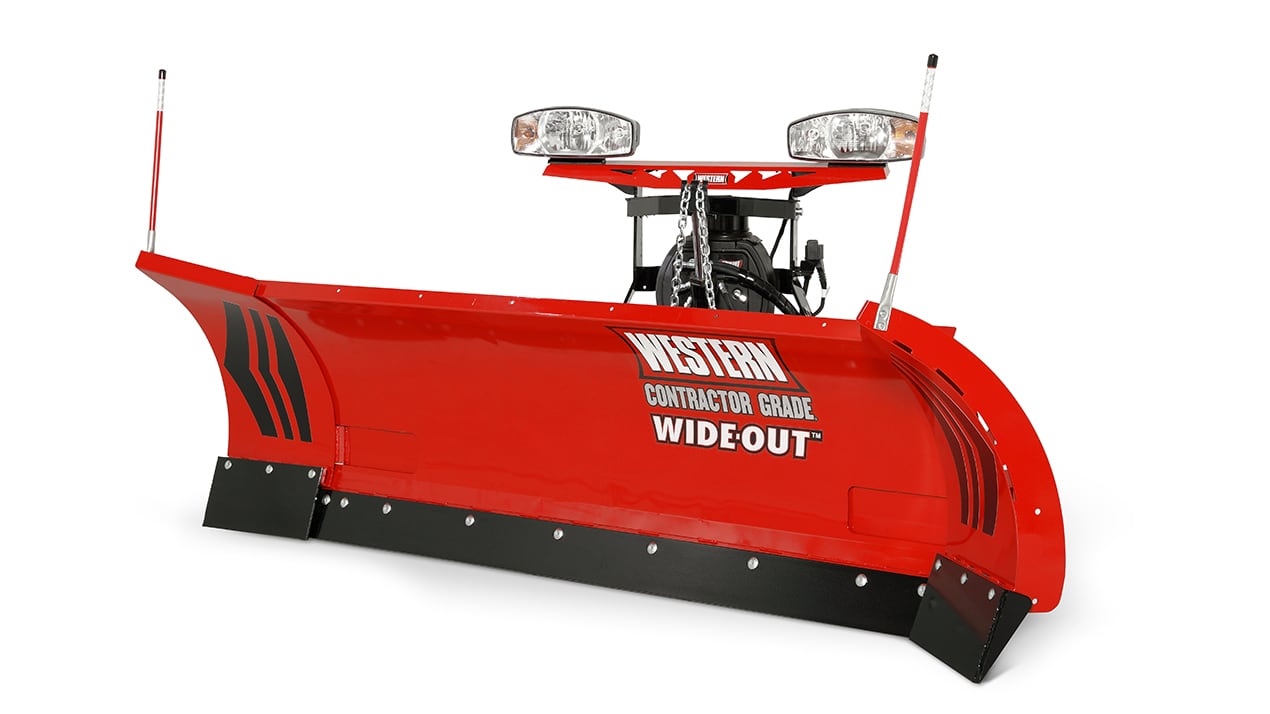

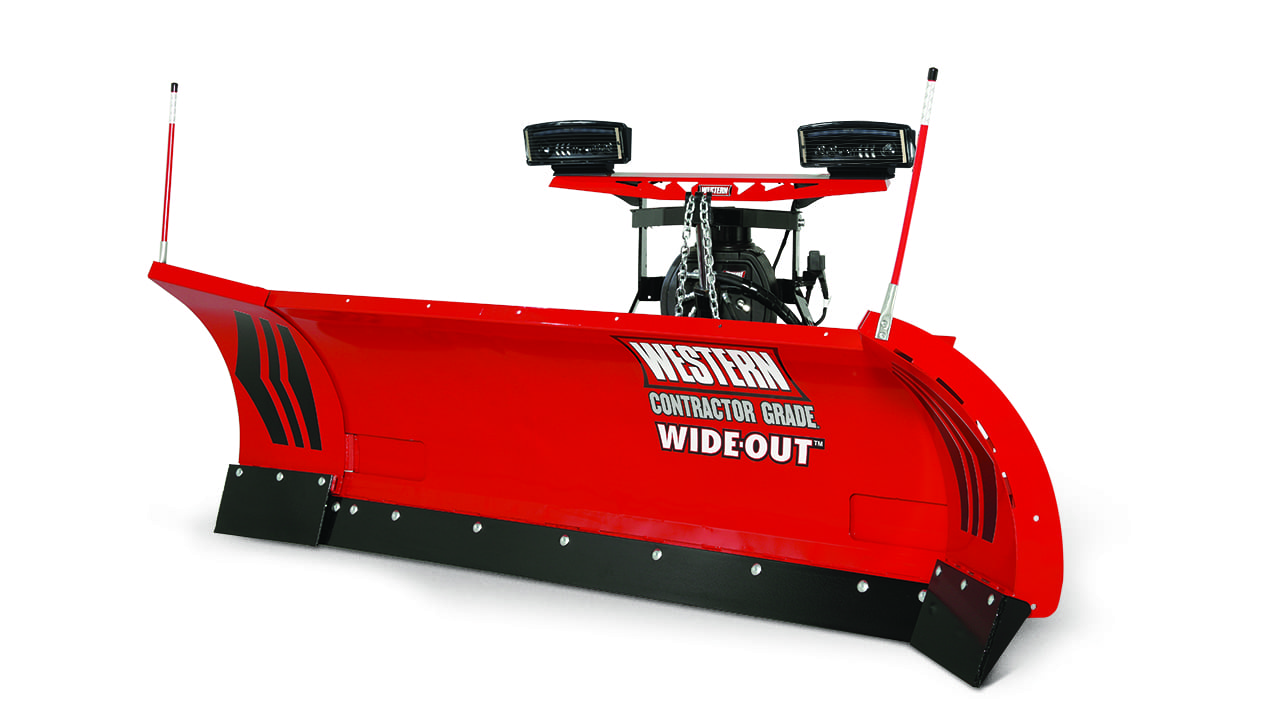

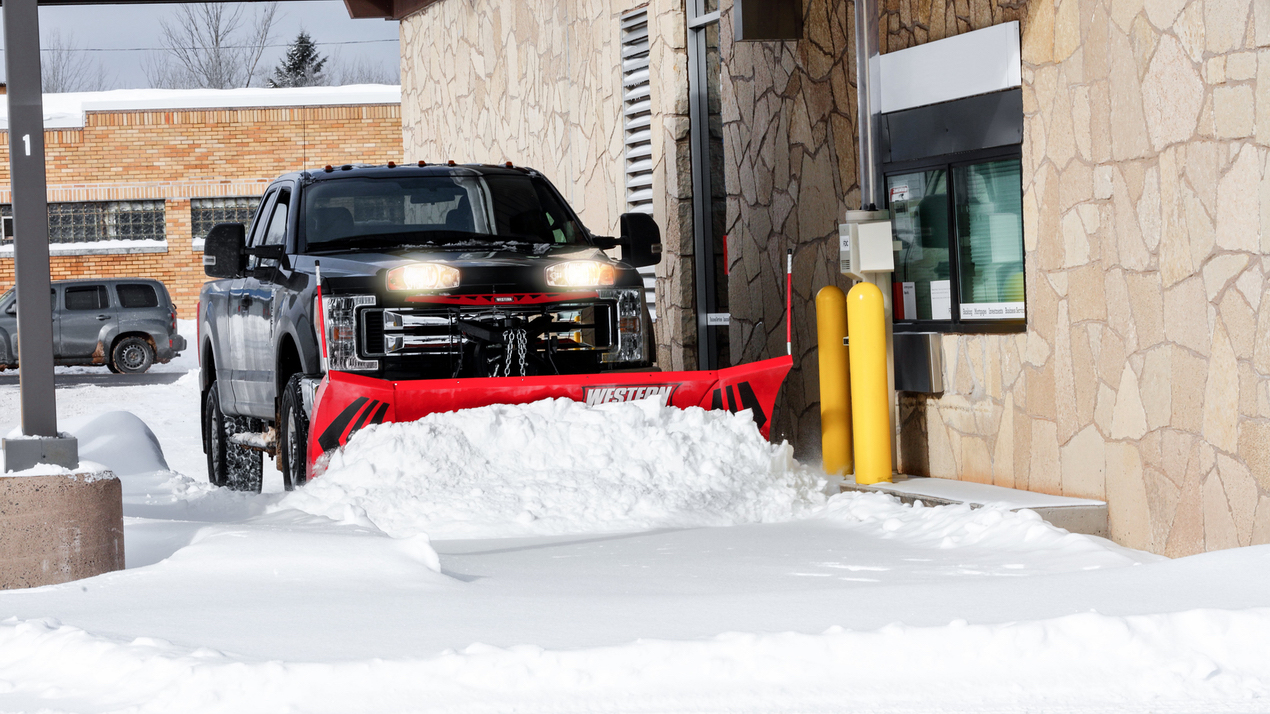

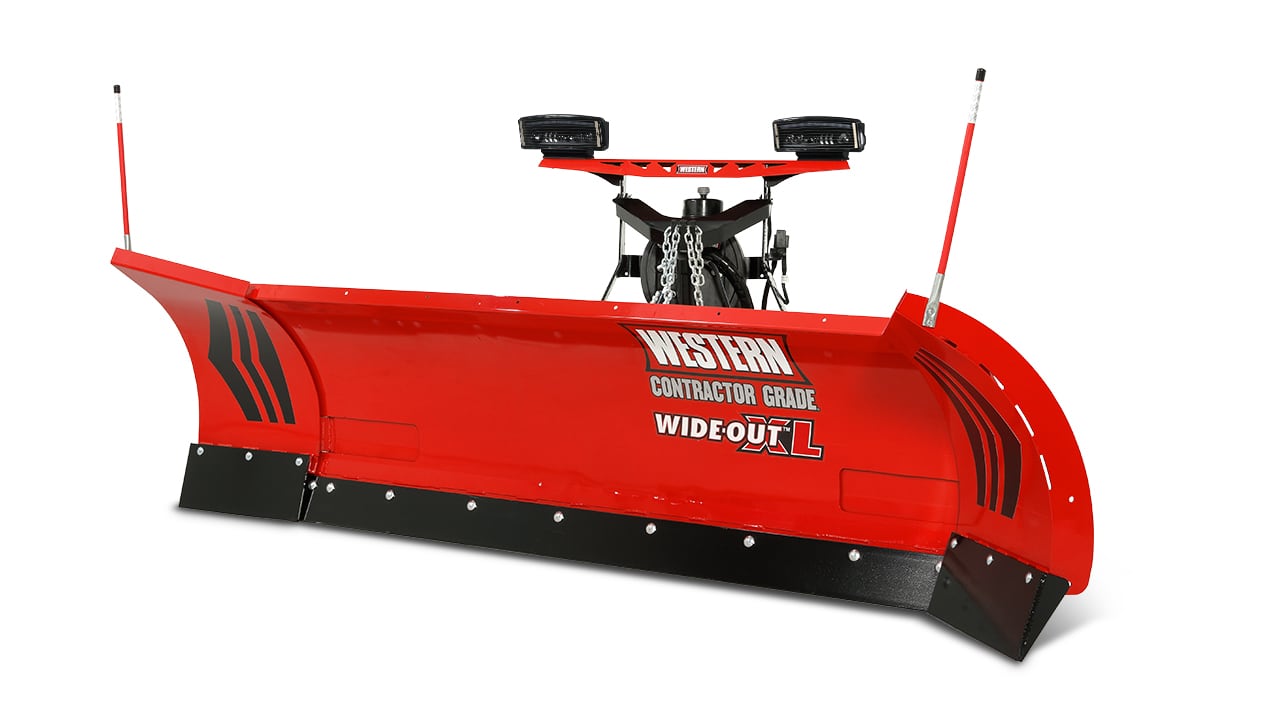

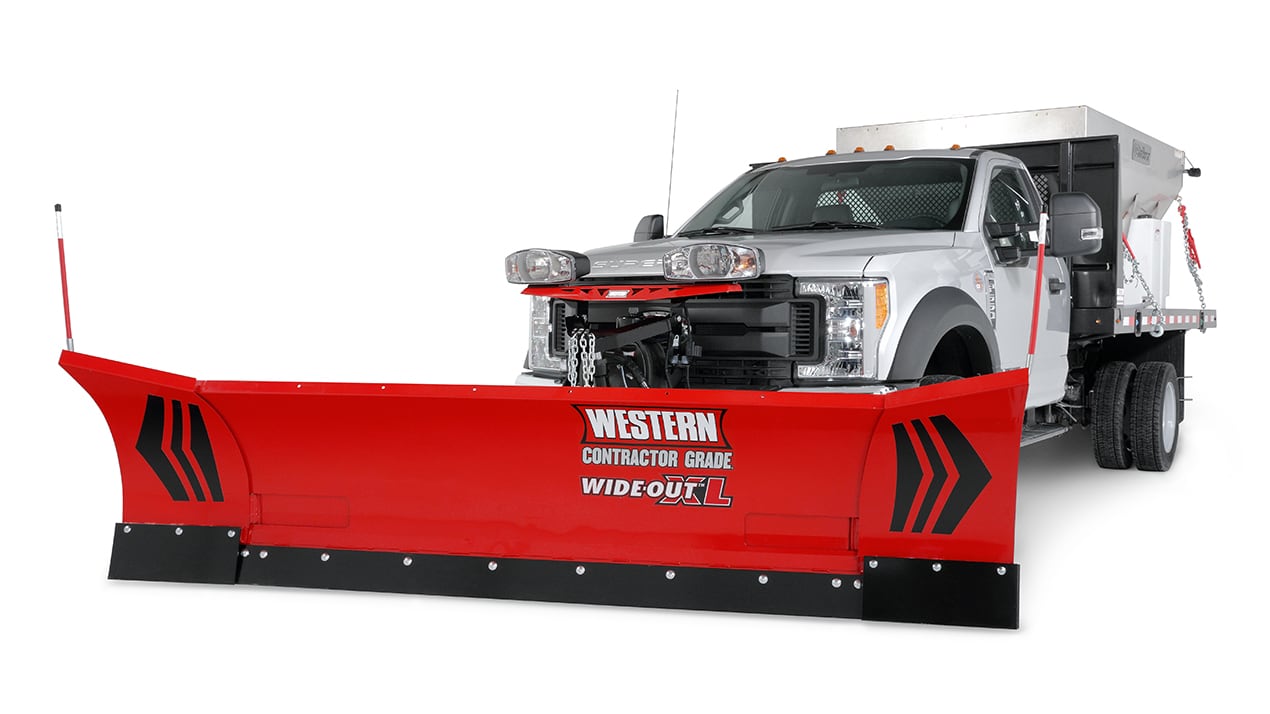

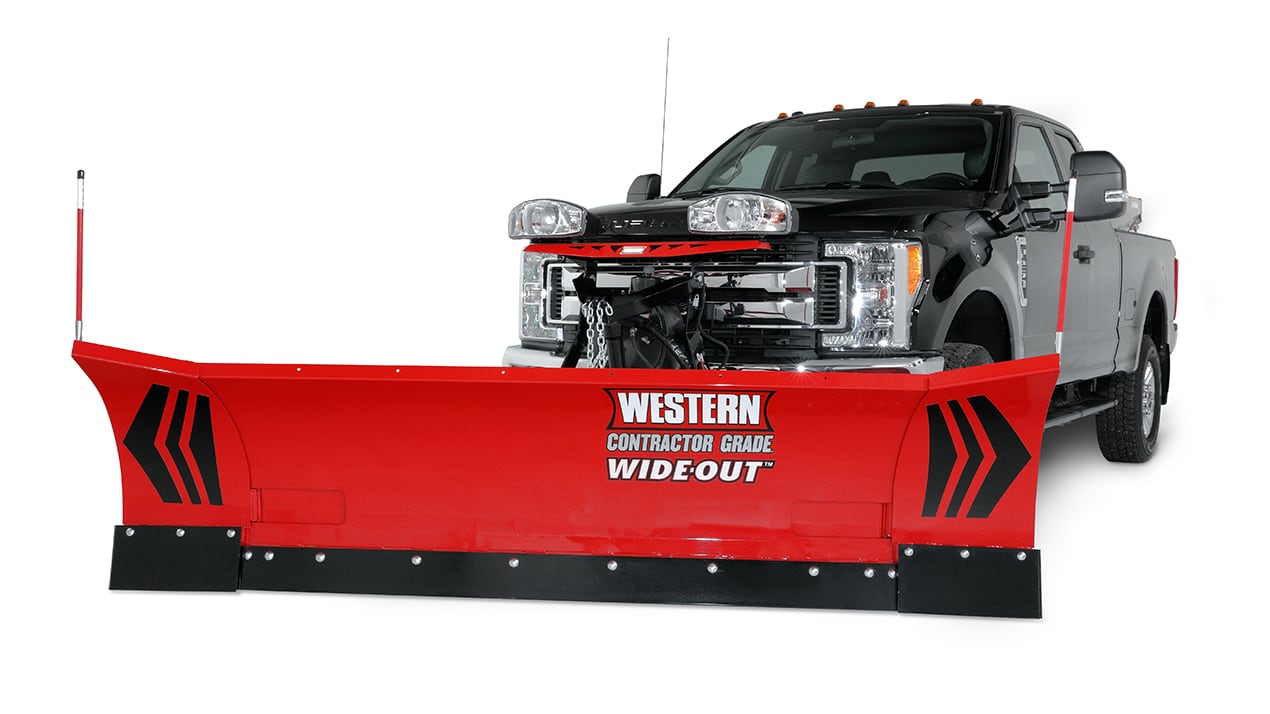

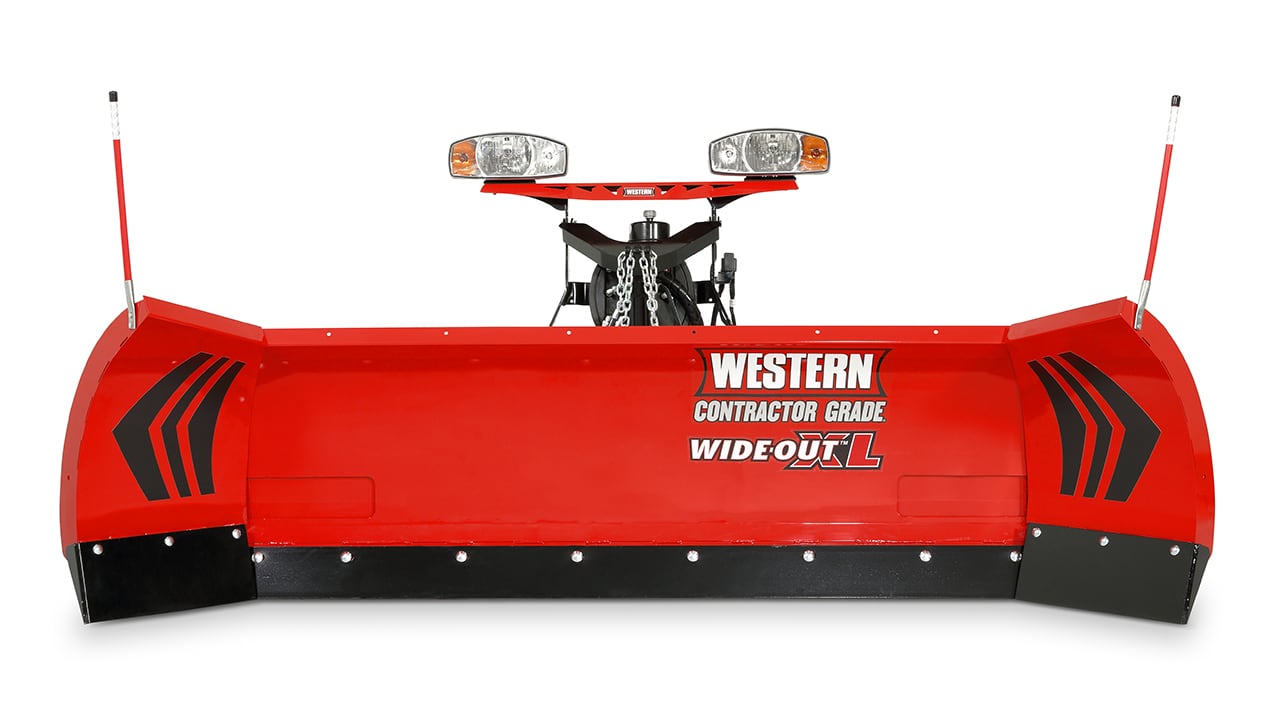

WESTERN WIDE-OUT™ & WIDE-OUT™ XL ADJUSTABLE WING SNOWPLOWS GALLERY
